Hydraulic motors are essential components in various machinery and systems, converting hydraulic energy into mechanical energy. This article explores how to modify standard hydraulic motors into free-running versions, enhancing their efficiency and performance.
A hydraulic motor is a device that converts hydraulic energy, typically from pressurized fluid, into mechanical energy. It operates by utilizing the pressure and flow of hydraulic fluid to create rotational movement. The primary types of hydraulic motors include:
- Axial Piston Motors
- Radial Piston Motors
- Gear Motors
- Vane Motors
Each type has unique characteristics suited for different applications.

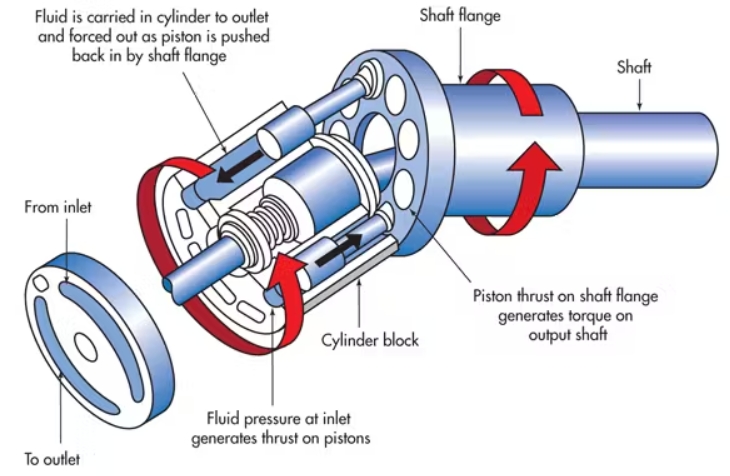

Hydraulic motors work based on Pascal's principle, where pressure applied to a confined fluid is transmitted undiminished throughout the fluid. The motor's design allows it to convert this pressure into rotational motion. The speed and torque produced by the motor depend on the flow rate and pressure of the hydraulic fluid supplied.
Understanding the components of hydraulic motors is crucial for making modifications:
- Cylinders: Where the hydraulic fluid acts to create motion.
- Pistons: Move within the cylinders, converting fluid pressure into mechanical energy.
- Shaft: Transfers the rotational energy to the connected load.
- Bearings: Support the rotating shaft and reduce friction.
A free-running hydraulic motor can rotate without being connected to a load or external driving mechanism. This feature is particularly beneficial in applications requiring high-speed operation with minimal resistance.
- Reduced Mechanical Losses: Free running motors experience lower friction and wear, leading to increased lifespan.
- Enhanced Efficiency: By minimizing energy losses, these motors operate more efficiently, especially at high speeds.
- Versatility: They can adapt to varying load conditions without significant performance degradation.
- Lower Energy Consumption: As they run freely, they require less power input for maintaining speed.
Free running hydraulic motors find applications across various industries due to their efficiency and adaptability:
In agricultural machinery like seeders and harvesters, free-running motors allow for faster operation without compromising power delivery. They enable precise control over planting depth and speed, enhancing crop yield.
Powering equipment such as excavators and cranes, these motors enable efficient movement and operation under varying load conditions. Their ability to run freely helps maintain consistent performance even when loads fluctuate.
Employed in assembly lines for efficient robotic operations, free-running motors enhance productivity by allowing machines to operate at higher speeds with lower energy consumption. They are crucial in tasks that require rapid movement and precision.
In manufacturing processes where speed is critical, free-running hydraulic motors can significantly improve cycle times while maintaining precision. Their ability to adapt to different operational demands makes them ideal for automated systems.
Choose a standard hydraulic motor that suits your application requirements. Consider factors such as displacement, torque, and pressure ratings.
- Displacement Size: Ensure it matches your system's needs.
- Torque Requirements: Higher torque may be necessary for specific applications.
- Pressure Ratings: Ensure compatibility with your hydraulic system's maximum pressure.
To achieve free-running capabilities:
Upgrade to low-friction bearings that reduce resistance during operation. Consider using ceramic or advanced polymer bearings designed for high-speed applications.
Modify the gear ratios to optimize speed and torque output for free-running conditions. This may involve changing gears or altering the configuration of existing gears.
Ensure that the hydraulic fluid used is compatible with high-speed operations:
These fluids reduce internal resistance and improve flow dynamics. Look for synthetic oils specifically formulated for hydraulic systems that can withstand high temperatures without breaking down.
Clean fluid is crucial for maintaining performance and preventing wear. Invest in high-quality filtration systems to ensure that contaminants are removed from the hydraulic fluid before it enters the motor.
After modifications, conduct thorough testing:
Measure speed, torque, and efficiency under various load conditions. Use data acquisition systems to monitor performance metrics accurately during testing sessions.
Adjust settings based on test results to achieve optimal performance. This may involve fine-tuning flow rates or pressure settings in your hydraulic system based on feedback from performance tests.
Once your motor has been converted into a free-running model, continuous monitoring is essential:
Implement sensors that track temperature, pressure, and rotational speed in real-time. This data can help identify potential issues before they lead to failure.
Schedule routine maintenance checks every few months or after significant operational changes. This includes inspecting seals, hoses, and other critical components for signs of wear or damage.
To ensure longevity and optimal performance of your modified hydraulic motor:
Conduct regular inspections of all components, including bearings, seals, and hoses. Look for signs of wear or damage that could affect performance.
Change hydraulic fluids regularly based on manufacturer recommendations or after significant operational hours. Contaminated fluid can lead to premature wear and reduced efficiency.
Keep an eye on temperature and pressure readings during operation. Abnormal readings can indicate issues that need immediate attention.
Ensure that filtration systems are clean and functioning properly to prevent contaminants from entering the hydraulic circuit.
As technology advances, several trends are emerging in the field of hydraulics that could impact free-running designs:
The integration of IoT (Internet of Things) technology allows for real-time data collection and analysis, enabling predictive maintenance strategies that enhance reliability and efficiency.
The development of new materials such as composites and enhanced polymers can lead to lighter components with superior strength-to-weight ratios, improving overall system efficiency.
The combination of electric drive systems with traditional hydraulics offers greater flexibility in operation while reducing energy consumption significantly.
As industries move towards greener practices, there's an increasing focus on developing environmentally friendly hydraulic fluids and systems designed for lower environmental impact.
Converting a standard hydraulic motor into a free-running version enhances its efficiency and versatility across multiple applications. By selecting the right components, optimizing fluid dynamics, conducting thorough testing, and implementing continuous monitoring practices post-modification, operators can significantly improve performance while reducing wear and tear on their machinery. With proper maintenance practices in place, these modified motors can deliver exceptional service life and reliability in demanding environments.
Free running hydraulic motors offer reduced mechanical losses, enhanced efficiency, versatility in varying load conditions, and lower energy consumption due to their ability to run freely without resistance from loads.
Check the specifications of your motor; models designed for high-speed operations are typically more suitable for conversion. Consulting with manufacturers or experts can also provide insights into compatibility.
Low viscosity hydraulic fluids are recommended as they reduce internal resistance and improve flow dynamics. Synthetic oils specifically formulated for high-speed applications are ideal choices.
While some modifications can be done independently with proper knowledge and tools, it is advisable to consult with a professional or an engineer experienced in hydraulics to ensure safety and effectiveness during modifications.
Regular testing is recommended after modifications; ideally, conduct tests every few months or after significant operational changes to ensure continued optimal performance.
