Measuring hydraulic motor torque is essential for ensuring optimal performance and efficiency in hydraulic systems. Torque measurement helps in understanding how much work is being done by the motor and is critical for system diagnostics, performance tuning, and control. This article will delve into various methods of measuring torque, including the principles behind these methods, their applications, advantages, and limitations.

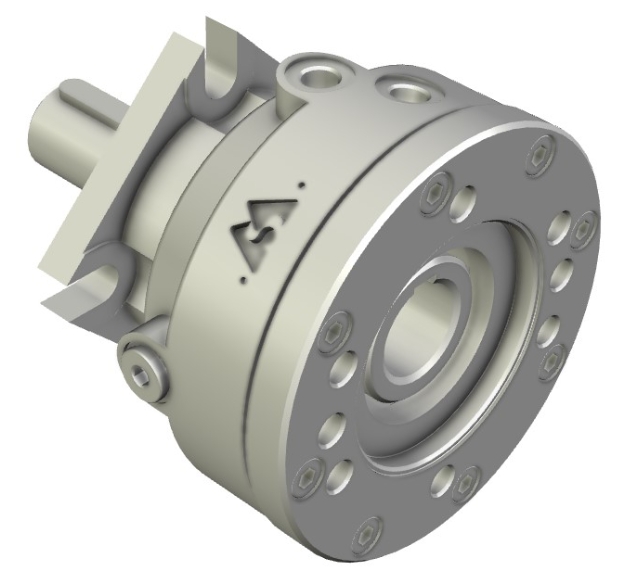

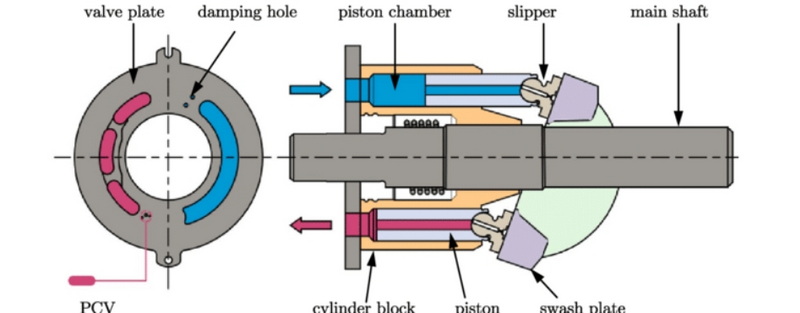

Torque is defined as the rotational force that causes an object to rotate around an axis. In hydraulic motors, torque is generated by the pressure of the hydraulic fluid acting on the motor's pistons or gears. The relationship between torque, horsepower, and RPM (revolutions per minute) can be expressed with the formula:
Torque T =(HP ×63025)/RPM Horsepower
This equation shows that torque is directly proportional to horsepower and inversely proportional to RPM. Understanding this relationship is crucial for accurately measuring torque in hydraulic motors.
Measuring torque in hydraulic motors is vital for several reasons:
1. Performance Optimization: Accurate torque measurements allow engineers to fine-tune hydraulic systems for maximum efficiency.
2. Preventive Maintenance: Monitoring torque can help identify potential issues before they lead to system failures.
3. Safety: Ensuring that motors operate within safe torque limits prevents equipment damage and enhances operational safety.
4. System Diagnostics: Torque measurements can assist in diagnosing problems within the hydraulic system, such as leaks or blockages.
Several factors can influence the accuracy of torque measurements in hydraulic motors:
- Fluid Viscosity: The viscosity of the hydraulic fluid can affect the pressure and flow rate, which in turn impacts torque output.
- Temperature Variations: Changes in temperature can alter fluid properties and affect sensor readings.
- Mechanical Wear: Over time, wear on motor components can lead to changes in performance, impacting torque measurements.
- Installation Errors: Improper installation of sensors or measurement devices can lead to inaccurate readings.
There are several methods to measure hydraulic motor torque, each with its own set of advantages and disadvantages. Below are some commonly used techniques:
Torque sensors are devices specifically designed to measure torque directly. They can be divided into two main categories:
- Rotary Torque Sensors: These sensors measure the torque applied to a rotating shaft. They often use strain gauges or magnetoelastic technology to provide accurate readings.
- Reaction Torque Sensors: These sensors measure the reaction force at a fixed point when a torque is applied to a shaft.
Both types of sensors can provide real-time data on torque output, making them ideal for monitoring and control applications.
Rotary torque sensors operate by detecting the deformation of a shaft when torque is applied. This deformation is measured using strain gauges bonded to the surface of the shaft. As the shaft twists under load, the strain gauges produce an electrical signal proportional to the amount of torque being exerted.
Rotary torque sensors are widely used in various applications such as:
- Automotive Testing: Measuring engine output during performance testing.
- Industrial Machinery: Monitoring performance in assembly lines and robotic systems.
- Aerospace Testing: Ensuring compliance with stringent regulations by monitoring component performance under load.
Load cells can be employed in conjunction with a torque arm to measure torque indirectly. In this method:
- A load cell is mounted where the torque arm connects to the frame.
- As the motor exerts torque, it creates a force on the load cell.
- The load cell converts this force into an electrical signal that can be measured and recorded.
This method is often used in laboratory settings for testing purposes.
Load cells are versatile and can be used in various applications beyond measuring torque, including weighing systems and material testing. They are relatively inexpensive compared to specialized torque sensors.
While load cells provide valuable information about applied forces, they may not always account for dynamic changes during operation. Calibration may be required regularly to maintain accuracy.
Another indirect method involves measuring the hydraulic pressure supplied to the motor:
- The pressure in the hydraulic lines can be measured using pressure transducers.
- By knowing the area of the piston and applying Pascal's principle, torque can be estimated using the formula:
Torque=Pressure×Area×Radius
This method is less accurate than direct measurement but can be useful in certain applications.
While this method provides a quick estimate of torque, it may not account for losses due to friction or inefficiencies within the system. Therefore, it should be used with caution when precision is required.
If direct measurements are not feasible, torque can also be calculated from power output:
- By measuring the horsepower output of the motor and knowing its RPM, you can calculate torque using the formula mentioned earlier.
This method relies on accurate measurements of horsepower and RPM but does not provide real-time data.
This approach is commonly used in scenarios where direct measurement tools are unavailable or impractical, such as during initial system setup or troubleshooting.
Choosing the appropriate method for measuring hydraulic motor torque depends on several factors:
- Accuracy Requirements: Direct measurement methods like rotary sensors provide higher accuracy compared to indirect methods.
- Cost Considerations: Some methods may require significant investment in equipment (e.g., rotary sensors), while others may utilize existing components (e.g., load cells).
- Application Environment: The operating environment (e.g., temperature, humidity) may affect sensor performance and reliability.
1. Type of Hydraulic System: Different systems may have varying requirements based on their design and application.
2. Measurement Frequency: Real-time monitoring may necessitate more advanced sensors compared to periodic checks.
3. Space Constraints: Some measurement techniques require more space than others; this must be considered during installation.
| Method | Advantages | Disadvantages |
|---|---|---|
| Direct Measurement | High accuracy; real-time data | Higher cost; requires installation |
| Load Cells | Cost-effective; easy to implement | Indirect measurement; may require calibration |
| Hydraulic Pressure Measurement | Utilizes existing pressure gauges | Less accurate; dependent on system conditions |
| Power Output Calculation | Simple calculations; no additional equipment needed | Less accurate; relies on other measurements |
Understanding how to measure hydraulic motor torque has practical implications across various industries:
In manufacturing environments where hydraulic motors drive machinery like presses or conveyors, accurate torque measurement ensures that machines operate efficiently without overloading or damaging components.
In an automotive assembly line, hydraulic presses are used for shaping metal parts. By measuring the torque produced by these presses, engineers can optimize their operation parameters leading to reduced cycle times and improved product quality.
Hydraulic motors are prevalent in construction machinery such as excavators and bulldozers. Monitoring their performance through torque measurement helps prevent breakdowns and extends equipment lifespan.
In excavators, monitoring motor torque ensures that operations such as digging or lifting are performed within safe limits. This not only enhances safety but also improves fuel efficiency by preventing over-exertion of machinery.
In aerospace applications, precision is paramount. Hydraulic systems control critical components such as landing gear and flaps; therefore, accurate torque measurements ensure reliability during operations.
In aircraft systems where hydraulic actuators control flight surfaces, precise control over motor performance through accurate torque measurement contributes significantly to flight safety and operational efficiency.
Automotive manufacturers use hydraulic motors in various applications from assembly lines to testing rigs. Measuring motor performance through torque helps optimize designs for fuel efficiency and performance.
During engine testing on dynamometers where hydraulic motors simulate vehicle loads, measuring output torque allows engineers to validate engine performance against specifications under varying conditions.
As technology advances, new methods for measuring hydraulic motor torque continue to emerge:
Wireless technology enables remote monitoring of hydraulic systems without extensive wiring setups. These sensors transmit data wirelessly to central monitoring systems, allowing for real-time analysis without physical connections that could wear out over time.
The integration of Internet of Things (IoT) technology allows for smarter monitoring solutions where data collected from sensors can be analyzed using machine learning algorithms for predictive maintenance insights.
Smart hydraulic systems equipped with advanced sensors provide comprehensive insights into system health by continuously monitoring parameters like temperature, pressure, flow rate alongside torque measurements leading to enhanced decision-making capabilities.
Measuring hydraulic motor torque is crucial for optimizing performance and ensuring reliability in hydraulic systems across various industries. Various methods are available, each with its own strengths and weaknesses. Direct measurement techniques offer high accuracy but at a higher cost, while indirect methods may be more cost-effective but less precise. Understanding these options allows engineers and technicians to select the most appropriate method based on their specific needs.
The continuous evolution of technology promises even greater advancements in how we monitor these critical parameters moving forward—enhancing both safety standards and operational efficiencies across multiple sectors.
Hydraulic motor torque refers to the rotational force produced by a hydraulic motor due to pressurized fluid acting on its components.
Torque can be calculated using the formula: Torque=(Horsepower×63025)/RPM.
Rotary torque sensors are devices that measure the torque applied to a rotating shaft using technologies like strain gauges or magnetoelasticity.
Yes, you can estimate torque using indirect methods like measuring hydraulic pressure or calculating from power output; however, these methods may be less accurate than direct measurements.
Measuring torque helps ensure optimal performance of hydraulic systems, aids in diagnostics, prevents equipment failures through maintenance schedules based on real-time data collection practices leading ultimately towards improved operational efficiencies across industries involved with hydraulics-based machinery setups.
