Rebuilding a hydraulic winch is a complex process that requires careful planning, the right tools, and a thorough understanding of the winch's components and operation. This guide will walk you through the steps to rebuild a hydraulic winch, highlighting key considerations and providing visual aids where possible.
Hydraulic winches are widely used in heavy-duty applications such as construction, towing, and marine industries due to their high power and reliability. However, like any mechanical device, they require regular maintenance and occasional rebuilding to ensure optimal performance.

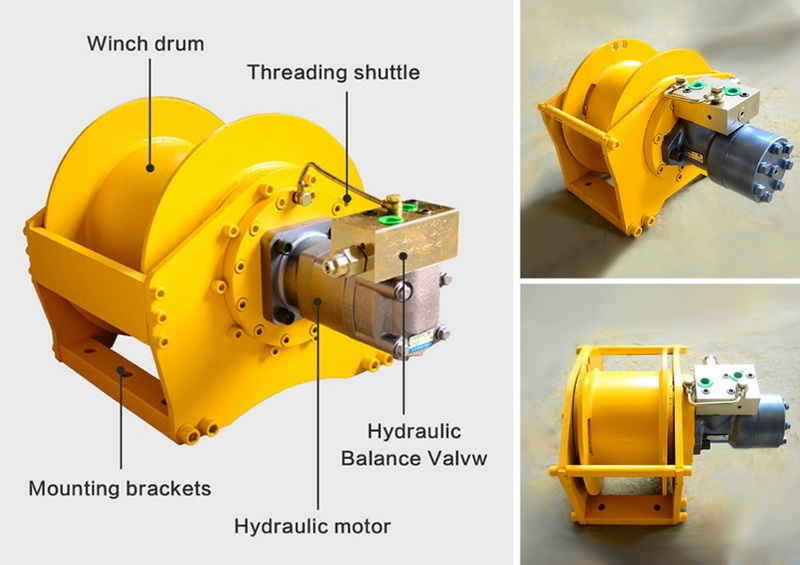

A hydraulic winch consists of several key components:
- Motor: Converts hydraulic pressure into mechanical energy.
- Gearbox: Transfers power to the drum.
- Drum: Holds the cable or rope.
- Brake System: Prevents the drum from rotating when not in use.
- Hydraulic System: Includes pumps, valves, and hoses.
Before starting the rebuild, ensure you have the following:
- Manual and Parts List: Essential for identifying components and procedures.
- Tools and Equipment: Specialized tools may be required for certain tasks.
- Workshop Space: A clean, well-lit area is crucial for efficient work.
- Always wear protective gear (gloves, safety glasses).
- Ensure the winch is disconnected from power sources.
- Use proper lifting techniques to avoid injury.
1. Remove External Components: Start by removing any external components such as the drum and gearbox.
2. Disconnect Hydraulic Lines: Carefully disconnect hydraulic lines to prevent fluid spills.
3. Remove Motor and Gearbox: These components may need to be removed to access internal parts.
Illustration: Disassembly of a hydraulic winch involves removing external components to access internal parts.
- Inspect for Wear: Check all components for signs of wear or damage.
- Clean Components: Use appropriate cleaning solutions to remove dirt and grime.
- Identify Damaged Parts: Use your inspection to determine which parts need replacement.
- Order Replacement Parts: Ensure new parts match the specifications of the originals.
Comparison of Original vs. Replacement Parts
| Component | Original Specification | Replacement Specification |
|---|---|---|
| Motor | 10 HP | 10 HP |
| Gearbox | 3:1 Ratio | 3:1 Ratio |
1. Reattach Motor and Gearbox: Ensure these components are securely fastened.
2. Reconnect Hydraulic Lines: Double-check connections to prevent leaks.
3. Reinstall Drum and External Components: Make sure all parts are properly aligned and secured.
Illustration: Reassembly involves carefully reinstalling components in the correct order.
- Purge Hydraulic System: Remove any air from the system to prevent damage.
- Operate the Winch: Test the winch under load to ensure proper function.
- Winch Not Turning: Check belt tension and ensure the quick disconnect knob is fully engaged.
- Hydraulic Leaks: Inspect all connections and replace seals as needed.
Hydraulic leaks are a common issue in hydraulic winches. They can lead to reduced efficiency and potential damage to components. Regular inspection and maintenance are crucial to identifying and fixing leaks promptly. Ensure all hydraulic connections are tight, and replace damaged seals or hoses as needed[4][5].
Hydraulic winches are susceptible to overheating, which can result from prolonged use or excessive loads. Overheating can lead to fluid breakdown, reduced lubrication, and potential damage to vital components. Install temperature sensors to monitor hydraulic fluid temperature, and implement a duty cycle for winch operation to prevent overheating.
In maritime environments, hydraulic winches are exposed to corrosive elements such as saltwater, leading to rust and corrosion on various components. Regularly inspect the winch for signs of corrosion, and apply corrosion-resistant coatings to protect critical components[5][8].
While rebuilding a hydraulic winch focuses on mechanical aspects, understanding advanced winching techniques can enhance operational efficiency and safety. Techniques such as single-line pulls, double-line pulls, and angled pulls are essential for effective recovery operations.
The single-line pull is the most straightforward technique, involving a direct pull from the winch to the anchor point. It is efficient and simple, making it ideal for beginners[3].
The double-line pull increases the winch's pulling power by looping the line through a pulley or snatch block. This setup effectively doubles the pulling force, making it suitable for heavier loads[3].
The angled pull technique is used when a straight-line pull is not feasible. It involves using snatch blocks to redirect the winch line, adjusting the angle of the pull to avoid excessive strain on the winch[3].
- Anchoring Angles: Ensure the winch line is as straight as possible to minimize lateral strain and improve pulling efficiency.
- Regular Maintenance: Inspect cables, electrical connections, and hydraulic components regularly to prevent issues.
The angle of the winch line relative to the vehicle affects how evenly the load is distributed during recovery. Ideally, the winch line should pull as straight as possible from the vehicle to the anchor. An angle of 0-30° is generally considered safe, as it maintains a nearly direct pull and minimizes lateral strain[3].
Avoid sudden jerks or sharp movements during winching, as these can cause damage to the winch or surrounding equipment. It is crucial to maintain a steady and controlled pace during operations.
Regular maintenance is crucial for prolonging the lifespan of a hydraulic winch. This includes inspecting hydraulic hoses, fittings, seals, and fluid levels regularly. Lubricate moving parts, clean the winch drum and motor, and check for any signs of wear or damage[2][5].
Maintaining the cleanliness and quality of hydraulic fluid is essential. Use the manufacturer's recommended fluid and change it according to prescribed intervals. Contaminated or degraded hydraulic fluid can cause system malfunctions[5][7].
Regularly replace hydraulic filters to prevent contaminants from circulating within the system. Clogged filters can reduce system efficiency and cause damage[5][8].
Ensure that all moving parts, including winch drums and bearings, are adequately lubricated. Use high-quality lubricants suitable for marine applications and compatible with the hydraulic oil[2][8].
Utilizing advanced diagnostic tools can significantly enhance the efficiency of hydraulic winch repairs. These tools allow for precise identification of issues and targeted repairs, reducing downtime and improving overall system performance[6].
Marine hydraulic winches require special attention due to their exposure to corrosive environments. Regular inspections for corrosion and rust are crucial, and applying corrosion-resistant coatings can protect critical components[5][8].
In addition to regular maintenance, marine hydraulic winches need specific care to handle saltwater exposure. This includes using stainless steel components and ensuring all electrical connections are sealed to prevent water intrusion[8].
For hydraulic winches equipped with brake systems, regular maintenance is essential to ensure safe operation. This includes inspecting brake pads and replacing them as needed, as well as checking the brake fluid level[1].
In cases where the brake system requires a rebuild, follow these steps:
- Disassemble Brake Housing: Remove the brake housing to access internal components.
- Replace O-Ring Seals: Change any damaged O-ring seals to prevent leaks.
- Reassemble Brake Components: Ensure all parts are securely fastened and properly aligned[1].
Rebuilding a hydraulic winch requires patience, attention to detail, and a thorough understanding of its components. By following these steps and using the right tools, you can ensure your winch operates efficiently and safely.
Always wear protective gear, ensure the winch is disconnected from power sources, and use proper lifting techniques.
Use visual inspection and feel for any signs of wear or damage on moving parts.
Common issues include hydraulic leaks, faulty brake systems, and improper drum alignment.
Regular maintenance should be performed every 500 to 1000 hours of operation, depending on usage.
While possible, it is recommended to seek professional assistance if you are not experienced with hydraulic systems.
