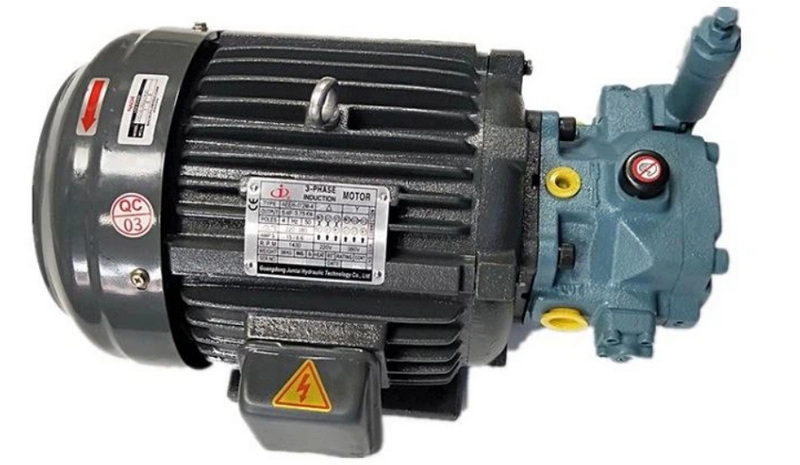

Selecting the right electric motor for a hydraulic pump is crucial for the efficiency and longevity of your hydraulic system. This comprehensive guide will walk you through the process of sizing an electric motor for a hydraulic pump, covering key considerations, calculations, and best practices.
Before diving into the sizing process, it's essential to understand the fundamental relationship between hydraulic pumps and electric motors. A hydraulic pump converts mechanical energy from the electric motor into hydraulic energy, which is then used to power various hydraulic components in a system.
Electric motors play a vital role in hydraulic systems by providing the mechanical power necessary to drive the hydraulic pump. They convert electrical energy into rotational mechanical energy, which is then used by the pump to pressurize and move hydraulic fluid throughout the system.
Understanding the type of hydraulic pump you're using is crucial for proper motor sizing. Common types include:
1. Gear pumps
2. Vane pumps
3. Piston pumps (axial and radial)
Each type has different efficiency characteristics and power requirements, which will impact motor selection.
Several factors come into play when sizing an electric motor for a hydraulic pump:
1. Flow Rate: The volume of hydraulic fluid the pump needs to move per unit of time.
2. Pressure: The force exerted by the hydraulic fluid in the system.
3. Pump Efficiency: The ratio of hydraulic power output to mechanical power input.
4. Operating Conditions: Including temperature, duty cycle, and environmental factors.
5. Starting Torque: The torque required to overcome initial system resistance and accelerate the pump to operating speed.
6. Load Variations: Fluctuations in system demand that may require the motor to handle peak loads.
7. Ambient Conditions: Factors like altitude, humidity, and corrosive environments that can affect motor performance.
First, calculate the flow rate (Q) in gallons per minute (GPM) and the pressure (P) in pounds per square inch (PSI) required for your hydraulic system.
Use the following formula to calculate the hydraulic power:
Hydraulic Power (HP) = (Q × P) / 1714
Where:
- Q is flow rate in GPM
- P is pressure in PSI
Divide the hydraulic power by the pump's mechanical efficiency (EM) to get the required motor power:
Motor Power (HP) = Hydraulic Power / EM
Typical pump efficiencies range from 0.80 to 0.90.
To account for potential variations in operating conditions and system demands, apply a safety factor of 1.1 to 1.2 to the calculated motor power.
Final Motor Size (HP) = Motor Power × Safety Factor
Ensure the selected motor can provide sufficient starting torque. For applications with high inertia or frequent starts, you may need to choose a motor with a higher service factor or consider soft start technologies.
Let's work through an example to illustrate the process:
Given:
- Flow Rate (Q) = 13.7 GPM
- Pressure (P) = 2,000 PSI
- Pump Efficiency (EM) = 0.80
- Safety Factor = 1.1
Step 1: Calculate Hydraulic Power
Hydraulic Power = (13.7 × 2,000) / 1714 = 15.99 HP
Step 2: Account for Pump Efficiency
Motor Power = 15.99 / 0.80 = 19.99 HP
Step 3: Apply Safety Factor
Final Motor Size = 19.99 × 1.1 = 21.99 HP
In this case, you would select a 25 HP motor, as it's the next standard size above the calculated value.
In systems with variable pressure and flow requirements, sizing becomes more complex. You'll need to consider:
1. Peak power requirements
2. Duty cycle
3. Average power consumption
For these systems, it may be beneficial to use a variable frequency drive (VFD) to adjust motor speed and power output based on demand.
- Energy savings during periods of low demand
- Soft start capabilities to reduce mechanical stress
- Precise control of pump speed and system pressure
Operating temperature can significantly impact motor performance. In high-temperature environments, you may need to:
1. Choose a motor with a higher temperature rating
2. Implement additional cooling measures
3. Oversize the motor to account for reduced efficiency
- Forced air cooling systems
- Liquid cooling for extreme environments
- Heat exchangers to dissipate excess heat
At higher altitudes, air density decreases, which can affect motor cooling. For installations above 3,300 feet (1,000 meters), consider derating the motor or selecting a higher power rating.
Several types of electric motors are commonly used with hydraulic pumps:
1. AC Induction Motors: Most common, reliable, and cost-effective.
2. Permanent Magnet Motors: Higher efficiency but more expensive.
3. Servo Motors: Precise control for applications requiring variable speed and torque.
| Motor Type | Efficiency | Cost | Speed Control | Maintenance |
|---|---|---|---|---|
| AC Induction | Good | Low | Fair | Low |
| Permanent Magnet | Excellent | High | Excellent | Medium |
| Servo | Excellent | High | Excellent | High |
Selecting an energy-efficient motor can lead to significant cost savings over the life of the system. Consider these options:
1. Premium Efficiency Motors: Offer higher efficiency ratings than standard motors.
2. Soft Starters: Reduce inrush current during motor startup.
3. Variable Frequency Drives: Allow for precise control of motor speed and power consumption.
To estimate potential energy savings, use the following formula:
Annual Energy Savings (kWh) = HP × 0.746 × Operating Hours × Load Factor × (1/Standard Efficiency - 1/Premium Efficiency)
Proper installation and maintenance are crucial for optimal performance and longevity:
1. Ensure proper alignment between the motor and pump.
2. Use flexible couplings to accommodate minor misalignments.
3. Implement a regular maintenance schedule, including lubrication and bearing checks.
4. Monitor motor temperature and vibration to detect potential issues early.
- Vibration analysis to detect bearing wear or misalignment
- Thermography to identify hot spots and potential insulation failures
- Oil analysis to assess lubrication quality and detect metal particles
To illustrate the impact of proper motor sizing, consider this case study:
A manufacturing plant was experiencing frequent motor failures and inefficient operation in their hydraulic press. After a thorough analysis, it was determined that the existing 20 HP motor was undersized for the application. The system was upgraded with a properly sized 30 HP motor, resulting in:
1. 25% increase in production output
2. 40% reduction in energy consumption
3. 80% decrease in unplanned downtime
This upgrade paid for itself within 8 months through energy savings and increased productivity.
- Proper sizing can significantly improve system reliability
- Energy efficiency gains can lead to substantial cost savings
- Increased productivity can quickly offset the initial investment
As technology advances, new trends are emerging in motor sizing for hydraulic pumps:
1. IoT Integration: Smart motors with built-in sensors for real-time monitoring and predictive maintenance.
2. AI-Assisted Sizing: Software that uses machine learning to optimize motor selection based on application data.
3. Modular Systems: Plug-and-play motor-pump units that simplify installation and upgrades.
- Digital Twins: Virtual models of motor-pump systems for simulation and optimization
- Advanced Materials: New motor designs using high-performance materials for improved efficiency
- Wireless Power Transmission: Potential for cable-free motor operation in certain applications
Conducting regular system audits is crucial for maintaining optimal performance and efficiency of your hydraulic system. These audits should include:
1. Performance Evaluation: Assess the system's overall efficiency and compare it to design specifications.
2. Load Profile Analysis: Examine how the system operates under various load conditions.
3. Energy Consumption Review: Identify opportunities for energy savings through motor upgrades or system modifications.
4. Maintenance Record Review: Analyze maintenance history to identify recurring issues or potential failure points.
By performing these audits, you can proactively address issues, optimize system performance, and extend the life of your hydraulic components.
When sizing and selecting motors for hydraulic pumps, it's important to consider the environmental impact:
1. Energy Efficiency: Choose motors with high efficiency ratings to reduce energy consumption and carbon footprint.
2. Noise Reduction: Select motors and pumps designed for quiet operation, especially in noise-sensitive environments.
3. Fluid Selection: Consider using biodegradable hydraulic fluids to minimize environmental impact in case of leaks.
4. End-of-Life Planning: Choose motors and components that can be easily recycled or refurbished at the end of their service life.
Properly sizing an electric motor for a hydraulic pump is crucial for system efficiency, reliability, and longevity. By following the steps outlined in this guide and considering factors such as flow rate, pressure, efficiency, and operating conditions, you can select the optimal motor for your hydraulic system. Remember to account for potential future needs and energy efficiency when making your selection. Regular maintenance and monitoring will ensure your motor continues to perform at its best, maximizing the return on your investment.
As technology continues to evolve, stay informed about new developments in motor and pump technology that could further improve your hydraulic system's performance. By combining traditional sizing methods with advanced technologies and energy-efficient practices, you can create a hydraulic system that operates at peak efficiency, reduces costs, and contributes to a more sustainable industrial environment.
It's recommended to reassess your motor sizing every 3-5 years or whenever there are significant changes to your hydraulic system requirements. This ensures your motor remains optimally sized as your needs evolve.
In some cases, yes. A VFD can allow you to use a smaller motor by optimizing power consumption based on demand. However, you should still ensure the motor can handle peak loads.
Common signs include frequent overheating, tripping of overload protection, excessive noise or vibration, and inability to maintain required pressure or flow rates.
Higher efficiency motors convert more electrical energy into mechanical energy, potentially allowing for a smaller motor size. Always use the actual efficiency rating in your calculations for accurate sizing.
While it's generally safe to choose the next size up, it's not always necessary. Consider factors like duty cycle and potential for future expansion. In some cases, a motor that's too large can be less efficient and more costly to operate.
