A gearbox and a gear reducer are both essential components in mechanical power transmission systems, but understanding their functions and differences is crucial for selecting the right one for specific applications. While the terms are sometimes used interchangeably, they have distinct characteristics. This article aims to clarify the relationship between gearboxes and gear reducers, exploring their definitions, working principles, types, and applications.
A gearbox, also known as a gear drive, is a contained set of gears used to transmit power and alter torque and speed between a motor and driven equipment. Gearboxes can either increase or decrease speed, change the direction of rotation, or do both[1]. An automotive transmission is a common example of a gearbox. Inside a car's transmission, gears of different sizes work together to optimize engine power for various driving conditions, from starting and accelerating to maintaining speed on the highway. Gearboxes are versatile power transmission components that can adapt to various speed and torque requirements.
A gear reducer, also known as a speed reducer, is a type of gearbox specifically designed to decrease rotational speed and increase torque[2]. It uses a system of gears and shafts to lower the input speed to produce a slower output speed while maintaining or increasing the output torque. Gear reducers are commonly found in industrial settings where heavy machinery requires precise control over speed and power. A gear reducer is like a "workhorse" excelling at high torque, low-speed applications.
- Caption: An image of the inside of a gearbox.
In summary, all speed reducers are gearboxes, but not all gearboxes are speed reducers. The primary function of a gear reducer is to reduce speed and amplify torque, whereas a gearbox can perform various functions, including speed reduction, speed increase, and directional changes.
A gearbox functions by using multiple gear sets to transmit mechanical power. These gears can vary in size and ratio, allowing for changes in speed and torque. The arrangement of gears within the gearbox determines its specific function, whether it's to reduce speed, increase speed, or change the direction of rotation. The gears mesh together, transferring power from the input shaft to the output shaft, and the ratio of the gears determines the change in speed and torque. Gearboxes can incorporate multiple stages and different gear types to meet complex application demands.
A gear reducer operates on the principle of reducing speed while increasing torque[2]. This is achieved by meshing gears with different numbers of teeth. The input shaft rotates and drives the gear system, which then alters the speed and torque at the output. For instance, pairing a 1750 RPM motor to a speed reducer with a 20:1 ratio will give you an output speed of 87.5 RPM. This reduction in speed results in an increase in torque, following the principle of energy conservation. The larger the gear ratio, the greater the reduction in speed and the increase in torque.

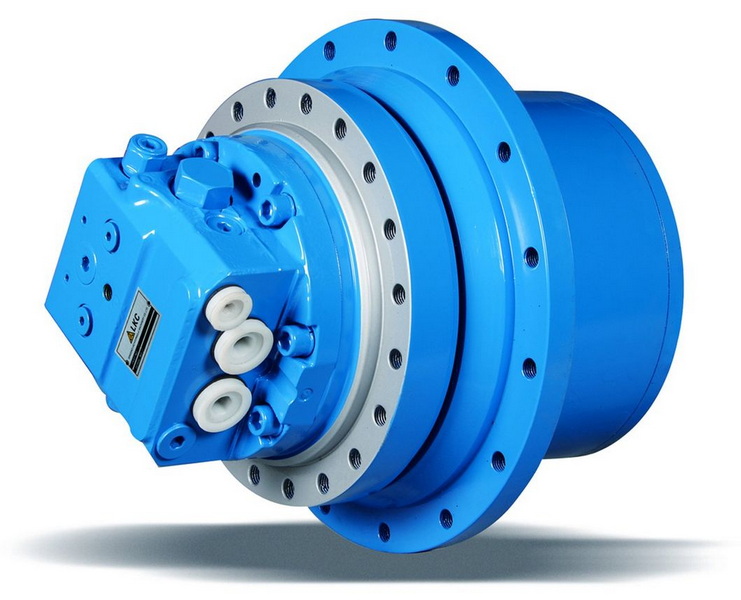

- Caption: An example of a gear reducer used in mechanical engineering.
1. Automotive Transmissions: Used in vehicles to change gear ratios for different driving conditions.
2. In-Line Gearboxes: Commonly made up of helical or spur gears, planetary gears, cycloidal mechanisms, or harmonic wave generators.
3. Right Angle Gearboxes: Typically use worm gearing or bevel gearing to transmit torque at a 90-degree angle.
4. Multi-Speed Gearboxes: Offer a variety of gear ratios to optimize performance for different operating conditions.
5. Epicyclic Gearboxes: Also known as planetary gearboxes, these use a sun gear, planet gears, and a ring gear to provide high torque in a compact design.
1. Parallel Shaft Gear Reducers: Combine spur and helical gears to reduce rotational speed while keeping input and output shafts parallel[2].
2. Worm Gear Reducers: Use a worm gear and worm wheel to achieve high reduction ratios in a single stage, with the input gear rotating perpendicular to the output gear[2].
3. Bevel Gear Reducers: Employ bevel gears, such as hypoid gears, to reduce speed and change the output axis by 90 degrees[2].
4. Planetary Gear Reducers: Utilize a central sun gear, planetary gears, and a ring gear to provide high torque and compact design[5].
5. Helical Gear Reducers: Use helical gears for efficient and quiet operation[2].
6. Cycloidal Gear Reducers: Also known as harmonic drives, offer precise and zero-backlash gear reduction and are popular in applications requiring high-precision motion control, like robotics and aerospace technology[2].
7. Spur Gear Reducers: The simplest type of gear reducer, utilizing spur gears to reduce speed and increase torque along parallel shafts.
1. Automotive Industry: Transmissions in cars and trucks[1].
2. Industrial Machinery: Various machines requiring adaptable speed and torque[2].
3. Power Generation: Wind turbines and other renewable energy systems[2].
4. Material Handling: Conveyor systems and packaging machinery[2].
5. Agriculture: Part of the kinematic chain of mowers, harvesters, tillers, and similar pieces of equipment[2].
6. Aerospace: Actuating control surfaces such as ailerons and flaps.
1. Conveyor Systems: Reducing motor speed to move materials at a controlled pace[2].
2. Robotics: Enhancing torque for precise and powerful movements[3].
3. Pumps: Converting high-speed, low-torque input to low-speed, high-torque output[2].
4. Automation: Adjusting speed and torque in automated systems[3].
5. Mobility Equipment: Elevators and escalators.
6. Factory Equipment: Industrial robots and conveyor belts[3].
7. Automatic Equipment: Automatic doors and shutters.
8. Precision Equipment: Medical, surveying, and optical equipment.
9. CNC Machines: Precision gear reducers, such as harmonic drives and RV reducers, are essential for CNC machines, facilitating precise movements and enhancing manufacturing accuracy[3].
10. Electric Vehicles: Gearboxes are being redesigned to accommodate electric motors, inverters, and battery systems, offering greater efficiency and reduced environmental impact[6].
11. Mining Operations: Heavy-duty gear reducers power crushers, grinders, and conveyors to extract and process ore.
- Caption: Worker connecting hoses between the engine and the gearbox in a tractor production section.
Advantages:
- Versatility in changing speed, torque, and direction[1].
- Ability to handle a wide range of applications.
Disadvantages:
- Can be more complex and require more maintenance.
- May be larger and heavier than gear reducers.
Advantages:
- Simple design and high efficiency for speed reduction and torque amplification[2].
- Compact size and quiet operation.
- Lower maintenance requirements.
Disadvantages:
- Limited to primarily reducing speed and increasing torque.
- May not be suitable for applications requiring variable speed adjustments.
- Gearbox: Choose if the application requires versatile power manipulation, including changing speed and direction.
- Gear Reducer: Choose if the primary need is to reduce speed and increase torque efficiently.
- Gearbox: May be larger and heavier, which can be a constraint in some applications.
- Gear Reducer: Generally smaller and lighter, making it suitable for space-constrained environments.
- Gearbox: More complex, requiring potentially higher maintenance.
- Gear Reducer: Simpler design translates to lower maintenance needs.
- Gearbox: Higher initial cost but may offer long-term value due to versatility.
- Gear Reducer: Lower upfront cost, ideal for applications with straightforward speed reduction needs.
- Gearbox: Consider gearboxes with suitable sealing and protection against harsh environmental conditions.
- Gear Reducer: Select gear reducers made from corrosion-resistant materials for outdoor or corrosive environments.
Sensors are being embedded into gearboxes to monitor temperature, vibration, and lubrication levels[1]. This data enables predictive maintenance, reducing downtime and extending the lifespan of the gearbox. Smart gearboxes can streamline workflows and diagnose equipment performance by producing performance data[7].
With the rise of electric vehicles, gearboxes are being redesigned to accommodate electric motors, inverters, and battery systems, offering greater efficiency and reduced environmental impact[6]. The shift towards e-mobility leads to lighter, more compact, and energy-efficient solutions in gearbox design[6].
Modularity and scalability are key trends, allowing manufacturers to customize and adapt gearboxes to specific applications and requirements[6]. Modular designs enable faster assembly, easier maintenance, and cost-effective upgrades[6].
Manufacturers are leveraging advanced simulation tools, predictive analytics, and design optimization techniques to fine-tune gearbox performance, reduce energy consumption, and enhance overall efficiency[6].
The integration of IoT (Internet of Things) and predictive maintenance sensors allows gear reducers to monitor wear and efficiency in real time[3]. Smart gear motors with built-in sensors help detect issues before failures occur, reducing downtime in industries like logistics and manufacturing[3].
- Gearbox: Advanced materials such as lightweight alloys and high-strength steels enhance the durability and performance of gearboxes[1].
- Gear Reducer: Synthetic lubricants and advanced lubrication systems reduce friction and wear, extending the lifespan of gear reducers.
Smart gearboxes equipped with sensors and IoT connectivity are revolutionizing the industry[1]. AI is also being used for optimizing performance, predictive maintenance, and real-time diagnostics, making gear systems more efficient and reliable[1].
The use of lightweight materials and advanced manufacturing techniques is another crucial trend[1]. Lightweight materials reduce the overall weight of gearboxes, enhancing fuel efficiency and performance, particularly in automotive applications[1].
With the increasing demand for automation and robotics, precision gear reducers, such as harmonic drives and RV reducers, will see significant growth. They are essential for use in CNC machines, smart manufacturing, collaborative robots (cobots), and automated guided vehicles (AGVs)[3].
Manufacturers focus on high-efficiency gearboxes, such as helical and planetary gears, to reduce energy loss. Brushless DC motors (BLDC) with integrated gear reducers are becoming more common for energy-efficient operations[3].
Precision is the most important thing in K Series Helical-bevel Gear Reducers[8]. These reducers provide controlled and exact speed reduction while delivering high torque, making them suitable for applications that demand precision and accuracy[8]. The K Series reducers drive many processes in manufacturing, such as powering conveyor systems, assembly lines, and various automated machinery, ensuring that each step is executed with utmost accuracy[8]. The K Series Helical-bevel Gear Reducers also facilitate precise control over the movements and articulation of robot arms and ensure that conveyor systems operate smoothly, even under heavy loads, by providing the necessary torque and control[8].
The Dodge Quantis product line offers In-Line Helical (ILH) and Right-Angle Helical Bevel (RHB) gear reducers that are dimensionally interchangeable with major global competitors. The helical gearing found in Quantis reducers is 98% efficient per stage. Paired with a premium efficient motor, the Quantis gear motor minimizes energy consumption while maximizing delivered torque. The Quantis gearing line features patented installation and removal that provides true value to customers, as well as an easy method of removing a motor from a gear reducer or removing a shaft-mounted gearbox without causing damage. The advanced design concept of Dodge Quantis provides flexibility for applications that require the compactness of an integral gearmotor, the durability of a 3-piece coupling, or a shaft input for direct-coupled equipment. Quantis gear motors are available with configurable protection levels, covering both indoor and outdoor elements with specific features and benefits.
In summary, while the terms "gearbox" and "gear reducer" are often used interchangeably, a gear reducer is a specific type of gearbox designed to reduce speed and increase torque. Gearboxes, on the other hand, are more versatile and can perform various functions, including speed reduction, speed increase, and directional changes. The choice between a gearbox and a gear reducer depends on the specific requirements of the application, including the need for versatile power manipulation, size and weight constraints, maintenance considerations, cost, and environmental factors. Emerging trends in gearbox technology focus on integrating sensors, electric drivetrains, modular designs, performance optimization, advanced materials, digitalization, automation, and energy efficiency to enhance efficiency and reliability[1][3][6]. Understanding these differences is essential for engineers and designers to select the most appropriate component for their mechanical power transmission systems.
A gear reducer is designed specifically to reduce speed and increase torque, while a gearbox is a more general term for a device that uses gears to transmit power and can either increase or decrease speed, change direction, or both.
Yes, while less common, some gearboxes are designed to increase the speed of the input, though most are used to reduce speed.
Gear reducers are commonly used in conveyor systems, robotics, pumps, automation, mobility equipment like elevators and escalators, and various factory and precision equipment.
The advantages of using a gear reducer include simple design, high efficiency for speed reduction and torque amplification, compact size, quiet operation, and lower maintenance requirements.
Consider the specific requirements of your application. If you need versatile power manipulation, including changing speed and direction, choose a gearbox. If your primary need is to reduce speed and increase torque efficiently, a gear reducer is the better option.
