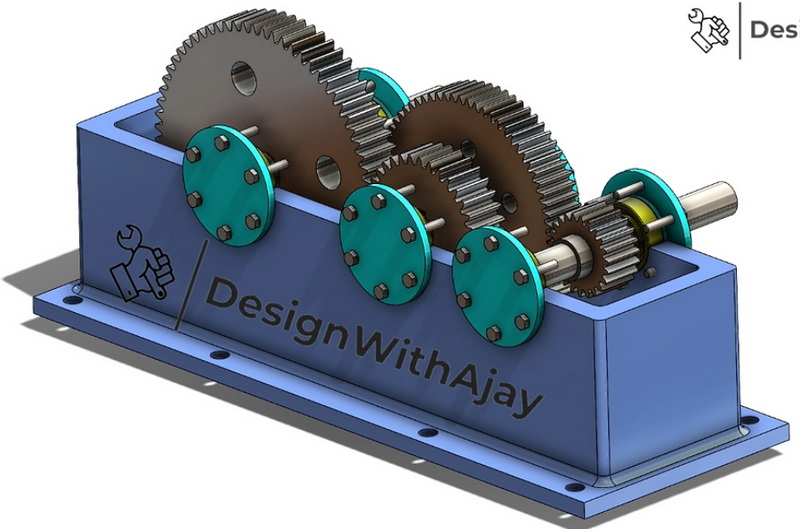

Worm gear reducers are a cornerstone of modern mechanical engineering, providing unique advantages in power transmission, torque multiplication, and speed reduction. Their compact design, self-locking capabilities, and smooth operation make them indispensable across a wide range of industries—from material handling and robotics to automotive and heavy machinery. This article explores the many advantages of using a worm gear reducer, delves into their working principles, and provides practical guidance on their selection, installation, and maintenance.

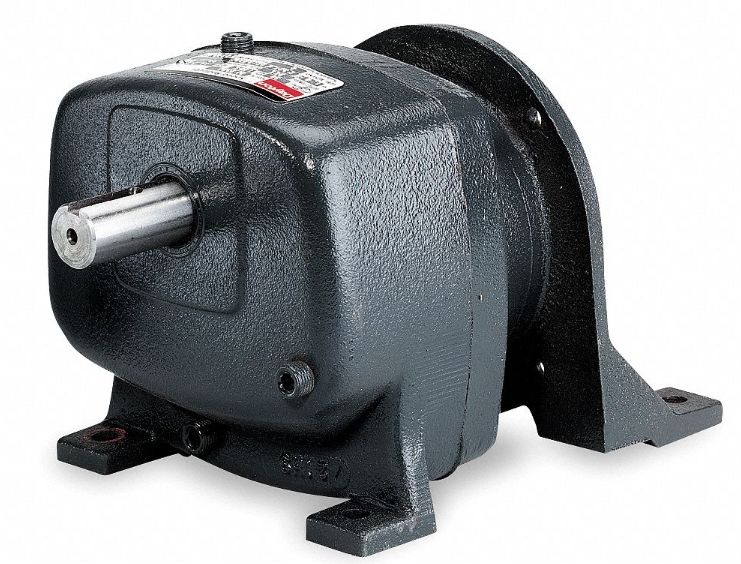

A worm gear reducer—also known as a worm gearbox or worm speed reducer—is a mechanical device that uses a worm (a screw-like gear) meshing with a worm wheel (a helical gear) to transmit motion and power between non-parallel, usually perpendicular, shafts. This arrangement not only changes the direction of rotation but also allows for significant speed reduction and torque multiplication in a compact footprint[16][1][14].
The worm, driven by the input shaft, rotates and its helical threads engage the teeth of the worm wheel. As the worm turns, it "pushes" the worm wheel, causing it to rotate. The speed ratio between the input and output shafts is determined by the number of threads on the worm and the number of teeth on the worm wheel. For example, a single-start worm and a 50-tooth wheel yield a 50:1 reduction ratio[14][16][10].
- High Reduction Ratio: A single stage can achieve ratios up to 100:1 or more, which would require multiple stages in other gear types[16][1][19].
- Torque Multiplication: The output torque increases proportionally with the reduction ratio.
- Self-Locking: In certain configurations, the worm gear reducer prevents the output shaft from back-driving the input, providing a built-in braking mechanism[16][6][1].
Worm gear reducers can achieve high reduction ratios (up to 100:1 or higher) in a single stage, which is difficult for other gear types. This means fewer components, reduced complexity, and lower risk of failure[1][11][19].
The perpendicular arrangement of the input and output shafts allows for a compact, right-angle design. This is ideal for applications with limited installation space[16][1][2].
The friction between the worm and the worm wheel often prevents the output shaft from driving the input shaft. This self-locking feature is critical for safety in lifting, hoisting, or load-holding applications, as it prevents back-driving and accidental load drops[16][6][1].
Worm gear reducers operate with sliding contact, resulting in smooth and quiet motion—making them suitable for noise-sensitive environments such as elevators, theaters, and medical devices[1][19][7].
Due to the high reduction ratio, worm gear reducers can multiply input torque significantly, making them ideal for heavy-duty applications requiring high starting or holding torque[16][1][14].
With fewer moving parts compared to multi-stage gearboxes, worm gear reducers are easier to assemble, maintain, and repair. Many modern models are sealed for life, requiring minimal maintenance[19][6][7].
Worm gear reducers are available in various mounting configurations (flange, foot, shaft-mounted) and can be integrated with standard motors, offering flexibility for diverse applications[2][19][7].
With fewer components and a simple design, worm gear reducers offer a low cost-to-torque ratio, making them an economical choice for many industrial and commercial uses[19][3].
- Material Handling: Conveyors, lifts, hoists, and packaging machinery[16].
- Industrial Machinery: Mixers, crushers, extruders, and presses[16][1].
- Automotive: Power steering systems, winches, and transmission components[16][10].
- Robotics: Actuators, positioning systems, and drive mechanisms[16][10].
- Medical Devices: Patient lifts, adjustable beds, and surgical equipment[16][1].
Worm gear reducers come in several types, each suited for specific requirements:
| Type | Description | Typical Use Cases |
|---|---|---|
| Single Reduction | One worm and worm wheel set; moderate reduction ratios | General machinery, conveyors |
| Double Reduction | Two sets for higher reduction ratios and torque | Heavy-duty, high-torque applications |
| Hollow Shaft | Output shaft is hollow, allowing direct mounting on driven equipment | Space-saving, direct drive applications |
| Solid Shaft | Traditional solid output shaft | General use, flexible coupling |
| Aluminum, Cast Iron, Stainless Steel | Different housing materials for weight, corrosion resistance, and strength | Food industry, corrosive environments |
When choosing a worm gear reducer, consider the following factors:

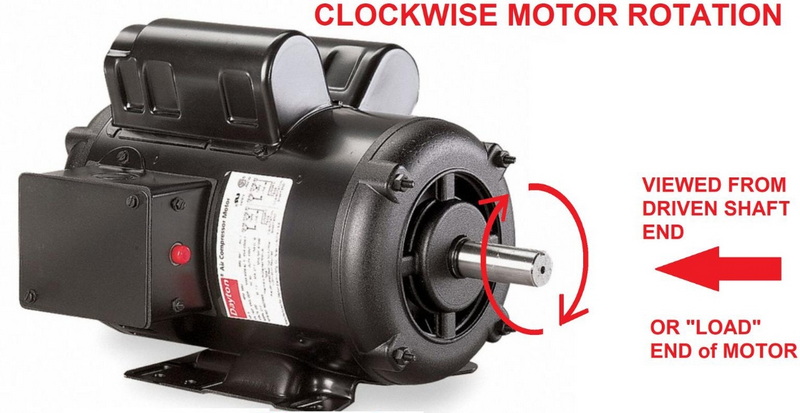

- Input Power and Speed: Match the reducer to the power and speed of your motor[14].
- Output Torque and Speed: Ensure the reducer can deliver the required torque at the desired output speed[14][10].
- Mounting Configuration: Choose between flange, foot, or shaft-mounted designs based on your machinery[2][19].
- Lubrication and Maintenance: Select sealed-for-life or easy-access designs based on maintenance preferences[19][4].
- Material and Durability: For heavy-duty or corrosive environments, select appropriate housing and gear materials[14][10].
- Self-Locking Needs: For load-holding or safety-critical applications, ensure the reducer provides adequate self-locking[16][6].
Worm gear reducers are generally low-maintenance but require proper lubrication to prevent overheating and excessive wear. Regularly check oil levels and replace lubricants as recommended by the manufacturer. Sealed-for-life models further minimize maintenance needs[4][5][19].
Below is a simplified diagram of a typical worm gear reducer:
| Component | Function |
|---|---|
| Worm (Input) | Receives rotational input, drives the worm wheel |
| Worm Wheel (Output) | Receives motion from worm, delivers output torque |
| Housing | Encases gears, supports shafts, holds lubricant |
| Bearings | Support rotating shafts, reduce friction |
| Seals | Prevent lubricant leakage and contamination |
- Using a Worm Gear Box – RoboByte
- Sketch Worm Gear Reducer in SolidWorks
- This is why worm gears are so cool...
Worm gear reducers offer a unique blend of high reduction ratios, compact design, self-locking capabilities, and smooth, quiet operation. Their versatility, cost-effectiveness, and simplicity make them a preferred choice for engineers and designers across numerous industries. While they may have lower efficiency compared to other gear types, their advantages in space-saving, torque multiplication, and safety are unmatched for many applications.
By understanding the principles, benefits, and maintenance requirements of worm gear reducers, you can make informed decisions that enhance the performance and reliability of your machinery.
The main advantage is the ability to achieve high reduction ratios in a single stage, resulting in significant torque multiplication and compact design. This makes worm gear reducers ideal for applications where space and high torque are critical[1][16][19].
Yes, many worm gear reducers are inherently self-locking, meaning the output shaft cannot drive the input shaft. This feature is valuable for applications requiring load holding or safety, such as hoists and lifts[16][6][1].
Regular lubrication is essential to prevent overheating and reduce wear. Many modern worm gear reducers are sealed for life, requiring minimal maintenance. Always follow the manufacturer's recommendations for oil type and replacement intervals[4][5][19].
They are widely used in material handling (conveyors, lifts), industrial machinery (mixers, extruders), automotive (steering, winches), robotics (actuators), and medical equipment (patient lifts, adjustable beds)[16][1][10].
Key factors include input power and speed, output torque and speed, mounting configuration, lubrication needs, material durability, and whether self-locking is required for your application[14][10][2].
