Ramsey hydraulic winches are renowned for their rugged reliability and performance in demanding applications, from towing and recovery to construction and industrial use. However, even the toughest equipment requires regular maintenance and, over time, certain parts will inevitably wear out and need replacement. In this comprehensive guide, we'll explore the most common Ramsey hydraulic winch parts that need replacement, how to identify wear, and best practices for keeping your winch in top condition.
Ramsey hydraulic winches are engineered for heavy-duty applications, utilizing hydraulic power to deliver consistent pulling force and control. Their robust construction and advanced design make them a staple in industries where reliability is non-negotiable. However, like all mechanical systems, they are subject to wear and tear, especially when used in harsh conditions.
Hydraulic winches differ from electric winches in that they use pressurized hydraulic fluid to power the winch motor. This design provides superior duty cycles, more consistent pulling power, and greater resistance to overheating, making Ramsey hydraulic winches ideal for continuous or heavy-duty use. Still, even the best winches require attention to their critical parts to ensure safe and reliable operation.

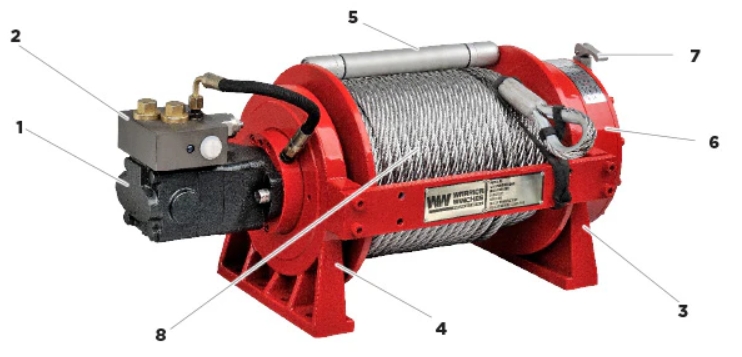

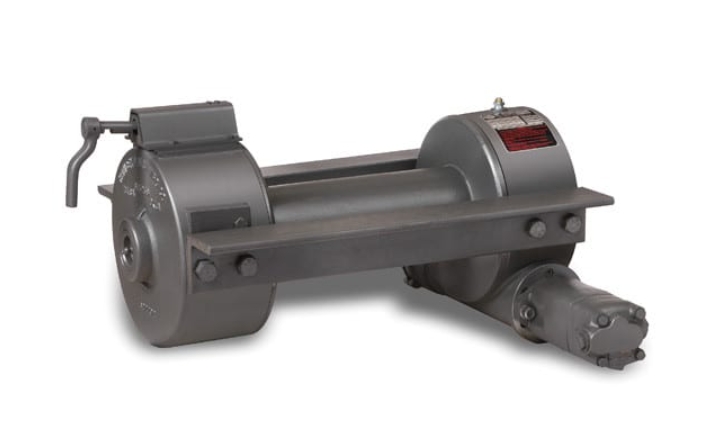

A typical Ramsey hydraulic winch consists of several critical components, each playing a vital role in the winch's operation:
- Hydraulic Motor: Converts hydraulic pressure into rotational force.
- Gearbox (Planetary or Worm Gear): Multiplies torque and controls speed.
- Drum and Drum Shaft: Holds and rotates the winch cable or rope.
- Wire Rope or Synthetic Cable: The pulling medium.
- Clutch Assembly: Engages or disengages the drum from the drive system.
- Brake System: Holds the load when the winch is stopped.
- Seals, Gaskets, and Bushings: Prevent leaks and reduce friction.
- Mounting Hardware: Secures the winch to its base or vehicle.
Understanding these parts is essential for diagnosing issues and performing maintenance or repairs.
The wire rope is subjected to constant tension, abrasion, bending, and exposure to the elements. Over time, this leads to fraying, broken strands, kinks, corrosion, and general fatigue. The cable is often the most visible and frequently replaced Ramsey hydraulic winch part.
- Ten or more broken strands within a 25mm section
- Visible signs of corrosion, kinks, or flattening
- Excessive wear or deformation
Unwind the old cable, inspect the drum for damage, and wind the new cable evenly, ensuring proper anchoring.
Seals and gaskets prevent hydraulic fluid and gear oil from leaking and keep contaminants out. Over time, they degrade due to pressure, heat, and chemical exposure. Leaking seals are a common maintenance issue with all hydraulic winches.
- Oil or hydraulic fluid leaks from the winch
- Visible cracks, hardening, or deformation of seals
Disassemble the winch housing, remove old seals and gaskets, clean mating surfaces, and install new components.
Bushings and bearings support the winch drum, allowing it to rotate smoothly under load. These parts wear out due to friction and lack of lubrication. Worn bushings are a leading cause of excessive drum play and noise.
- Excessive drum play or wobble
- Grinding noises during operation
- Visible scoring or wear on bushings/bearings
Remove the winch drum, press out old bushings or bearings, and install new ones, ensuring proper lubrication.
The hydraulic motor is the heart of the winch, converting hydraulic pressure into rotational force. Motors can fail due to internal wear, contamination, or seal failure.
- Loss of pulling power
- Unusual noises or vibrations
- Hydraulic fluid leaks from the motor
Disconnect hydraulic lines, remove mounting bolts, and swap the motor with a new or rebuilt unit, ensuring all seals are properly installed.
The clutch allows the drum to be engaged or disengaged for free-spooling. Clutch components wear out from repeated use, improper engagement, or lack of lubrication.
- Clutch fails to engage or disengage
- Difficulty in free-spooling the drum
- Rounded or worn clutch jaws
Disassemble the clutch housing, inspect all moving parts, replace worn items, and reassemble with proper lubrication.
Brakes hold the load when the winch is stopped. Brake pads, springs, and related hardware can wear out or become contaminated with oil.
- Winch fails to hold load when stopped
- Noticeable slippage or delayed braking
- Worn or contaminated brake pads
Disassemble the brake assembly, replace pads and springs, and clean all components before reassembly.
Gears transfer force from the motor to the drum. Over time, gear teeth can wear, chip, or break, especially under heavy or shock loads.
- Grinding noises or rough operation
- Excessive play in the drum
- Visible damage to gear teeth
Remove the gear housing, inspect all gears, replace damaged or worn gears, and reassemble with fresh lubricant.
Mounting bolts secure the winch to its base. They can loosen, stretch, or corrode, compromising the winch's stability and safety.
- Missing or loose bolts
- Corroded or stretched hardware
Replace with grade 5 or better bolts, ensuring all hardware is torqued to manufacturer specifications.
While the above components are the most commonly replaced, several other Ramsey hydraulic winch parts can also wear out over time, especially in harsh environments or with heavy use:
- Hydraulic Hoses and Fittings: These can develop leaks or cracks due to pressure cycles and environmental exposure.
- Control Valves and Solenoids: Responsible for directing hydraulic fluid, these can become clogged or fail electrically.
- Electrical Connectors (for winches with integrated sensors): Exposure to moisture and vibration can cause corrosion or loose connections.
- Cable Fairleads and Rollers: These guide the cable onto the drum and can wear down, causing rough cable spooling or damage.
Regular inspection of these secondary parts is also essential for reliable winch operation.
Regular inspection is key to identifying worn Ramsey hydraulic winch parts before they cause failure. Look for:
- Leaks: Indicate seal or gasket failure.
- Unusual Noises: Grinding, squealing, or clicking often points to worn gears, bearings, or bushings.
- Loose or Wobbly Drum: Suggests worn bushings or mounting hardware.
- Loss of Power: May indicate hydraulic motor issues.
- Cable Damage: Fraying, kinks, or corrosion require immediate replacement.
If you notice any of these symptoms, stop using the winch and perform a thorough inspection. Early detection and replacement of worn Ramsey hydraulic winch parts can prevent costly breakdowns and ensure safety.
Proper maintenance is the best way to extend the lifespan of your Ramsey hydraulic winch parts and reduce downtime. Here are some essential tips:
- Weekly: Check oil levels, lubricate cable, inspect for leaks.
- Monthly: Lubricate grease fittings, check clutch operation, inspect cable and mounting bolts.
- Annually: Drain and replace gear oil, inspect all major components for wear, and replace as needed.
- Keep the Winch Clean: Mud, sand, and debris accelerate wear on moving parts.
- Use Protective Covers: Shield the winch from weather when not in use.
- Operate Within Rated Limits: Overloading the winch stresses all components and shortens part life.
- Replace Hydraulic Fluid Regularly: Contaminated or degraded fluid can damage the motor and seals.
- Store Cable Properly: Evenly wind the cable on the drum to prevent kinks and uneven wear.
Proper maintenance significantly extends the life of Ramsey hydraulic winch parts and reduces downtime.
When replacing worn parts, consider upgrading to enhanced versions for improved performance and longevity:
- Synthetic Rope: Lighter and safer than steel cable, with less risk of injury if it snaps.
- Upgraded Seals: High-temperature or chemical-resistant seals for harsh environments.
- Heavy-Duty Bearings: For higher load capacity and longer service intervals.
- Improved Control Valves: For smoother operation and better hydraulic efficiency.
Always consult the Ramsey winch parts catalog or your dealer to ensure compatibility with your specific winch model.
For those who prefer visual instructions, here are some helpful videos:
- Shows step-by-step repair and maintenance tips for Ramsey hydraulic winches, including cleaning, lubrication, and part replacement.
- A detailed teardown and rebuild of a heavy-duty Ramsey winch, covering seal, gear, and bushing replacement.
Ramsey hydraulic winches are built to last, but even the most robust equipment needs periodic attention. The most common Ramsey hydraulic winch parts that require replacement include the wire rope, seals and gaskets, drum bushings and bearings, hydraulic motor, clutch assemblies, brake components, gear sets, and mounting hardware. Regular inspection, timely maintenance, and using genuine replacement parts are essential for ensuring your winch operates safely and efficiently for years to come.
By understanding the function and signs of wear for each of these critical components, you can proactively maintain your winch, minimize downtime, and maximize performance. Whether you're a professional operator or a weekend warrior, investing in the care of your Ramsey hydraulic winch and its parts pays off in reliability, safety, and peace of mind.
Regular inspection is recommended: weekly for oil levels and cable condition, monthly for clutch and mounting hardware, and annually for a complete teardown and inspection of internal components.
Use high-quality lithium grease for bushings and cable, and SAE 80W-140 gear oil for the gearbox. Always follow the manufacturer's recommendations for specific lubrication points and intervals.
Signs include loss of pulling power, hydraulic leaks, unusual noises, or excessive vibration. If cleaning and seal replacement do not resolve the issue, the motor may need to be replaced.
While aftermarket parts are available, using genuine Ramsey hydraulic winch parts ensures compatibility, reliability, and maintains warranty coverage.
Immediately stop using the winch and replace the cable. Operating with a damaged cable is dangerous and can lead to catastrophic failure.
