Hydraulic winches are indispensable tools in many heavy-duty industries, providing unmatched power and reliability for lifting, pulling, and positioning massive loads. Whether on a construction site, aboard a ship, or deep in a mine, the winch hydraulic system is often the backbone of critical operations. However, like any specialized equipment, hydraulic winches come with their own set of advantages and disadvantages that must be carefully weighed before making an investment.
This comprehensive article explores everything you need to know about hydraulic winches: how they work, their pros and cons, comparisons with electric winches, key applications, maintenance tips, and much more. Visual guides and video demonstrations will help you understand the inner workings and real-world performance of winch hydraulic systems. At the end, you'll find a detailed FAQ section addressing the most common questions about hydraulic winches.

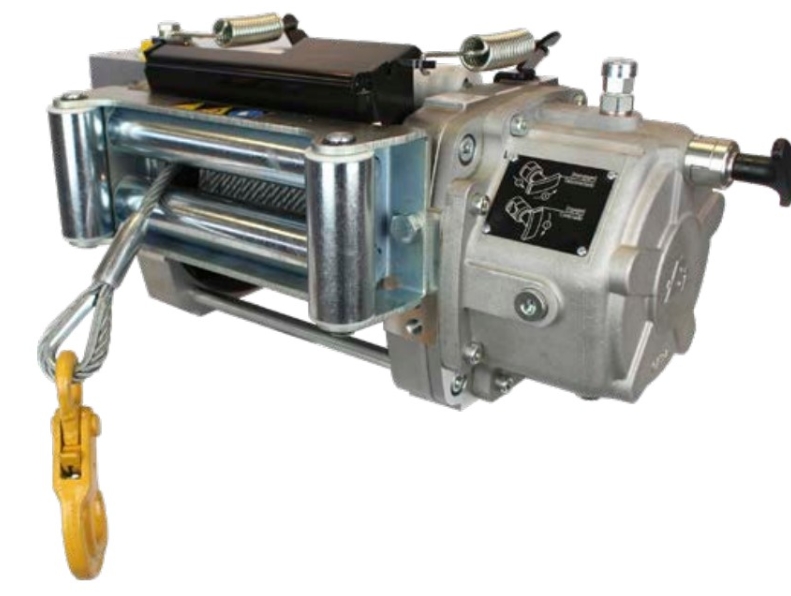

A hydraulic winch is a mechanical device that uses hydraulic power to wind or unwind a cable or rope, enabling it to pull, lift, or position heavy objects. Unlike electric winches that rely on electrical motors, hydraulic winches employ pressurized hydraulic fluid to generate rotational force. This design makes them exceptionally robust and suitable for continuous, high-load applications.
- Marine operations: anchor handling, mooring, towing, and salvage
- Construction: lifting and positioning heavy equipment or structures
- Mining: moving ore carts, machinery, and materials
- Off-road recovery: extracting vehicles from mud, sand, or snow
- Industrial: assembly lines, machinery movement, and more
Hydraulic winches are often chosen for their ability to operate in harsh environments and their compatibility with existing hydraulic systems on heavy equipment and vehicles.
The heart of a winch hydraulic system is its ability to convert hydraulic energy into mechanical force. Understanding this process is key to appreciating both the strengths and limitations of hydraulic winches.
- Hydraulic Pump: Pressurizes hydraulic fluid, usually powered by the vehicle's engine or an auxiliary motor.
- Hydraulic Motor: Converts the pressurized fluid's energy into rotational motion.
- Winch Drum: The spool where the cable or rope is wound.
- Control Valves: Regulate the flow and direction of hydraulic fluid, controlling the winch's speed and direction.
- Planetary Gearbox: Adjusts torque and speed to match the task.
- Brake System: Holds the load securely when the winch is not in motion.
1. The hydraulic pump draws fluid from a reservoir and pressurizes it.
2. Pressurized fluid is directed through hoses to the hydraulic motor.
3. The motor spins, turning the winch drum and winding or unwinding the cable.
4. Control valves allow the operator to adjust speed, direction, and stopping.
5. The brake system ensures the load remains secure when the winch is stopped.
Hydraulic winches offer a suite of advantages that make them the preferred choice for demanding applications. Here are the most significant benefits:
Hydraulic winches deliver higher pulling power than electric winches, making them ideal for moving extremely heavy loads. They provide constant torque across the entire speed range, ensuring reliable performance even under the most challenging conditions.
Unlike electric winches, which can overheat and require rest periods, hydraulic winches can operate continuously as long as the hydraulic system is running. This makes them perfect for prolonged tasks such as marine towing, construction lifting, or industrial assembly.
Hydraulic winches are built for rugged environments. Their sealed construction protects them from dust, water, and debris, and their robust components are designed for years of heavy use. With proper maintenance, a winch hydraulic system can last significantly longer than its electric counterpart.
Hydraulic winches can operate underwater or in wet environments without risk of electrical short circuits or corrosion. This makes them the first choice for marine, offshore, and flood-prone applications.
The pulling force of a hydraulic winch remains constant regardless of how much cable is wound on the drum. This contrasts with electric winches, where pulling power can decrease as the drum fills.
Hydraulic winches can be easily integrated into the hydraulic systems of trucks, excavators, cranes, and ships. This flexibility allows operators to leverage existing hydraulic infrastructure, reducing the need for additional power sources.
Many hydraulic winches include advanced safety features such as automatic brakes, overload protection, and remote controls, enhancing operator safety during heavy lifting or pulling operations.
Despite their strengths, winch hydraulic systems have several drawbacks that must be considered before purchase or installation.
Installing a hydraulic winch requires a hydraulic power source, which includes a pump, reservoir, hoses, and fittings. This setup can be complex, time-consuming, and expensive, especially if the host vehicle or equipment lacks an existing hydraulic system.
Hydraulic winches and their associated systems are generally more expensive than electric winches. The total cost includes not only the winch itself but also the hydraulic pump, hoses, fittings, and installation labor.
Hydraulic systems require regular maintenance to prevent leaks and ensure reliable operation. This includes checking and replacing hydraulic fluid, inspecting hoses and seals, and cleaning filters. Neglecting maintenance can lead to costly repairs and environmental hazards.
Most hydraulic winches depend on the engine running (e.g., via the power steering pump), so they cannot be used if the vehicle or machinery is off. This can be a limitation in remote or emergency situations where engine operation is not possible.
Hydraulic winches tend to be noisier and produce more vibration than electric winches. This can cause operator fatigue and may be unsuitable for noise-sensitive environments.
Hydraulic fluid leaks pose environmental hazards, especially in marine or sensitive ecological zones. Strict maintenance and prompt repairs are essential to minimize environmental impact.
Understanding the differences between hydraulic and electric winches can help you choose the right tool for your needs.
| Feature | Hydraulic Winch | Electric Winch |
|---|---|---|
| Power Source | Hydraulic system (pump, fluid, motor) | Electric motor (vehicle battery or mains) |
| Pulling Power | Higher, constant torque | Lower, torque decreases as drum fills |
| Duty Cycle | Continuous, non-stop operation | Limited by duty cycle, risk of overheating |
| Installation Complexity | High (requires hydraulic system) | Low (plug-and-play for most vehicles) |
| Maintenance | More frequent, hydraulic system upkeep | Less frequent, mainly electrical checks |
| Cost | Higher initial and setup cost | Lower upfront cost |
| Submersibility | Fully submersible, ideal for wet environments | Limited, risk of water ingress |
| Noise and Vibration | Higher | Lower |
| Environmental Risk | Hydraulic fluid leaks possible | None (unless battery leaks) |
| Application Suitability | Heavy-duty, industrial, marine, continuous use | Light to medium-duty, recreational, occasional |
Hydraulic winches are used in a wide variety of industries and environments:
- Marine and Offshore: Anchor handling, mooring, towing, and salvage operations.
- Construction: Lifting and positioning heavy equipment or materials.
- Mining: Moving ore carts, equipment, and materials in harsh environments.
- Off-Road Recovery: Extracting vehicles from mud, sand, or snow.
- Industrial: Assembly lines, heavy machinery movement, and more.
Their durability, power, and reliability make them the preferred choice for continuous, heavy-duty tasks.
Choosing the right winch hydraulic system for your needs involves several key considerations:
Always select a winch with a rated capacity at least 1.5 times the maximum load you plan to move. This safety margin accounts for dynamic loads and ensures reliable performance.
Consider the required cable length and drum capacity for your application. A larger drum accommodates longer cables but may reduce pulling power as the drum fills.
Ensure your vehicle or equipment can supply sufficient hydraulic pressure and flow to operate the winch at full capacity. Check manufacturer specifications for minimum requirements.
Choose between manual, electric, or remote controls based on your operational needs. Remote controls enhance safety by allowing operators to stand clear of the load.
If you'll be operating in marine or sensitive environments, select a winch with high-quality seals and corrosion-resistant materials to minimize environmental risks.
Proper maintenance is essential for safe and reliable operation of your winch hydraulic system.
- Check hydraulic fluid levels and top up as needed.
- Inspect hoses, fittings, and seals for leaks or damage.
- Examine the drum, cable, and hooks for signs of wear.
- Use only manufacturer-recommended hydraulic fluids.
- Replace fluid at intervals specified in the user manual.
- Dispose of used fluid responsibly to minimize environmental impact.
- Test the brake system regularly to ensure it holds the load securely.
- Verify that control valves and remote controls operate smoothly.
- Low pulling power: Check for low hydraulic fluid, clogged filters, or worn pump components.
- Noisy operation: Inspect for air in the hydraulic system or worn bearings.
- Slow winch speed: Ensure adequate hydraulic pressure and flow; check for blockages.
Hydraulic winches are powerful, reliable, and often indispensable for heavy-duty applications where electric winches fall short. Their ability to deliver constant torque, operate continuously, and withstand harsh environments makes them the top choice for marine, industrial, and construction tasks. However, these advantages come with trade-offs: higher installation complexity, greater maintenance demands, increased noise, and environmental considerations.
When choosing between a winch hydraulic system and other winch types, carefully assess your specific needs, budget, and operational environment. For continuous, heavy-duty use in challenging conditions, a hydraulic winch is often the superior investment.
Regular maintenance is crucial for hydraulic winches. This includes checking and replacing hydraulic fluid, inspecting hoses and connections for leaks, cleaning filters, and ensuring the brake and control systems are functioning properly. Follow the manufacturer's guidelines for maintenance intervals to maximize reliability and lifespan.
Yes, most hydraulic winches are designed to be fully submersible and can operate underwater, making them ideal for marine and offshore applications. The closed hydraulic system prevents water ingress and corrosion.
Choose a winch with a capacity at least 1.5 times the maximum load you plan to move. For example, if your heaviest load is 10,000 lbs, select a winch rated for at least 15,000 lbs.
- Never exceed the winch's rated capacity.
- Regularly inspect all components for wear or damage.
- Use proper anchoring and secure the load with appropriate hooks or straps.
- Always wear personal protective equipment and follow manufacturer instructions.
Common issues include hydraulic fluid leaks, noisy operation, high maintenance needs, and control system wear. Prevent these by:
- Performing regular maintenance and inspections.
- Using high-quality hydraulic fluid and replacing it as recommended.
- Ensuring proper installation and using compatible components.
- Addressing leaks and worn parts promptly to avoid environmental hazards and costly repairs.
