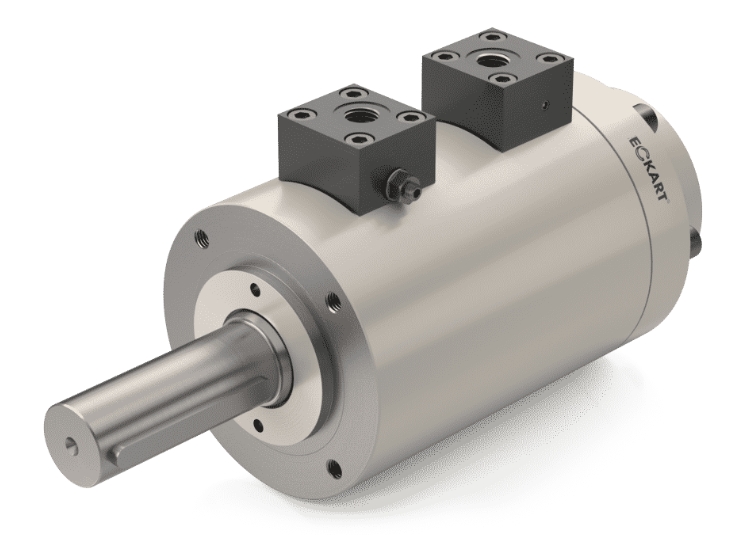

Hydraulic motors are pivotal components in hydraulic systems, deftly converting the kinetic energy of fluid flow into rotary mechanical power. This conversion is essential for a plethora of applications ranging from heavy machinery and industrial equipment to mobile vehicles. Grasping the intricacies of the components that enable a hydraulic motor to spin is vital for not only optimizing its performance but also ensuring efficient operation.

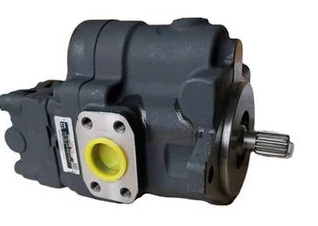

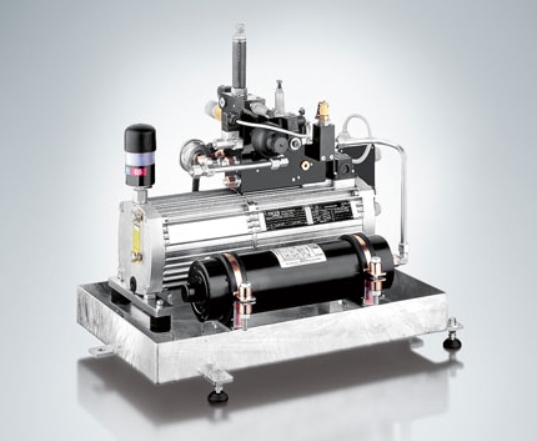

Hydraulic motors are meticulously engineered to transmit power in a highly controlled manner, leveraging the properties of pressurized liquids. These motors operate in concert with hydraulic pumps, which are tasked with maintaining a continuous and consistent flow of fluid. The pressure generated by the pump is then skillfully converted into rotary motion by the motor. The speed at which a hydraulic motor operates is directly correlated with the volume of oil supplied by the pump, while the torque produced is contingent upon the pressure that is supplied.
The landscape of hydraulic motors is diverse, featuring several distinct types, each tailored for specific applications and performance requirements. Among the most common types are:
- Axial Piston Motors: Characterized by pistons that are aligned axially with the motor's shaft, these motors are celebrated for their high efficiency and their ability to provide variable displacement capabilities. This makes them suitable for applications where precise control is paramount.
- Radial Piston Motors: In contrast to axial piston motors, radial piston motors feature pistons that are arranged radially around the shaft. This configuration allows them to deliver high torque, particularly at low speeds, making them ideal for applications requiring substantial force at slower rotational speeds.
- Hydraulic Gear Motors: These motors employ gears to either amplify or diminish the output speed, depending on the specific design. They are noted for being lightweight and cost-effective, making them a practical choice for a wide array of applications where budget and weight are considerations.
- Hydraulic Vane Motors: Utilizing vanes to convert fluid pressure into rotational energy, these motors are lauded for their compact size and suitability for low-pressure applications. Their design makes them a preferred choice for scenarios where space is limited and high pressure isn't a necessity.
The core of a hydraulic motor's functionality lies in its key components, including gears, vanes, pistons, and actuators. Each component is integral to the process of converting fluid pressure into the rotational motion that powers various machines and systems.
The driven gear, directly connected to the output shaft, plays a crucial role in transmitting the rotational motion that the hydraulic motor generates. Working in tandem with an idler gear, it is responsible for harnessing the power of hydraulic fluid pressure to create motion.
The operation of the driven gear commences as pressure within the hydraulic system intensifies. Being physically attached to the output shaft, the torque that the driven gear generates is seamlessly transferred through the output shaft, providing the mechanical power needed to drive the connected machinery.
As the final link in the chain of components, the output shaft is responsible for transmitting the rotational motion produced by the driven gear to the load that the motor is powering. It is critical for transforming the energy created by the hydraulic system into useful, practical work.
The output shaft is specifically engineered to endure the substantial torque and speed generated by the motor. The careful selection of materials and the shaft's design guarantee both durability and efficiency in transmitting power to the load. This ensures that the motor can reliably perform its intended function under varying operating conditions.
In motor designs like axial and radial piston motors, pistons are central to the motor's function. They serve as the direct interface between the hydraulic fluid's pressure and the motor's mechanical output, converting fluid pressure into mechanical energy by moving within their respective cylinders.
Typically, pistons are connected to either a shaft or a thrust ring. As hydraulic fluid floods into the cylinder, it exerts force on the pistons, compelling them to move outward. This outward movement, in turn, causes the shaft to rotate. This rotation is the driving force behind the load connected to the hydraulic motor.
While not always considered a primary component of hydraulic motors, actuators often complement them, extending their functionality. Actuators convert the rotational motion produced by the motor into linear motion when the application demands it.
Actuators can take the form of hydraulic cylinders, extending or retracting based on the hydraulic pressure applied to them. They are essential for applications that necessitate linear motion, such as lifting heavy objects or exerting pushing forces.
In vane motors, vanes are the key components responsible for converting fluid pressure into rotational energy. Positioned within a rotor, these vanes move in and out as the rotor spins, effectively creating a seal between the high-pressure and low-pressure sides of the motor.
As hydraulic fluid enters the motor, it exerts pressure on the vanes, pushing them outward and causing the rotor to spin. Once the vanes move to the low-pressure side of the motor, they retract, allowing the cycle to repeat continuously. This cyclical process ensures continuous rotational motion.
The case drain is a vital, often overlooked, component in hydraulic systems, consisting of a low-pressure hydraulic line that channels excess internal leakage from the motor back to the reservoir. This system is particularly crucial in piston motors, where it helps to mitigate metal-on-metal contact, which can occur in the absence of proper lubrication.
The case drain line serves to return any leaked fluid to the system, which is essential for preventing pressure from building up inside the motor. Consistent maintenance, including regular inspection and replacement of the case drain filter, is vital for preventing clogs that could ultimately lead to motor failure.
Hydraulic motors are susceptible to failure due to various factors, including:
- Failed Seals: Compromised seals can lead to leaks, allowing contaminants to infiltrate the system, causing damage.
- Clogged Case Drain Filters: When case drain filters become clogged, they impede proper fluid circulation, resulting in overheating and accelerated wear.
- Low or Dirty Gear Oil: In systems with planetary gears, inadequate or contaminated gear oil can lead to mechanical failure.
Implementing a robust maintenance strategy is crucial for preventing hydraulic motor failures. Regular maintenance tasks, such as inspecting seals, cleaning filters, and maintaining appropriate oil levels, can substantially extend the life of a hydraulic motor.
Beyond the basic components, advanced control techniques can optimize the performance of hydraulic motors. These include:
- Closed-Loop Control: This uses feedback sensors to monitor speed and torque, adjusting hydraulic flow to maintain desired performance.
- Proportional Valves: These precisely control fluid flow, allowing for smooth and accurate motor operation.
- Electronic Control Units (ECUs): Modern ECUs can manage complex motor functions, improving efficiency and responsiveness.
Integrating hydraulic motors with smart systems enhances their functionality. This includes:
- Remote Monitoring: Allows operators to monitor motor performance and identify potential issues remotely.
- Predictive Maintenance: Uses data analytics to predict when maintenance is needed, reducing downtime.
- Automated Control: Enables motors to be integrated into automated systems, improving overall efficiency.
Examining real-world applications of hydraulic motors provides practical insights:
- Construction Equipment: Hydraulic motors are used in excavators and loaders, providing the power needed for heavy lifting and digging.
- Agricultural Machinery: Tractors and harvesters rely on hydraulic motors for precise control and high torque.
- Manufacturing Plants: Hydraulic motors drive machinery, ensuring reliable and efficient operation.
In a construction excavator, a hydraulic motor powers the tracks, enabling the machine to move and maneuver. The motor must provide high torque to handle uneven terrain and heavy loads. Proper maintenance is essential to prevent downtime and ensure the excavator operates efficiently.
The future of hydraulic motors includes several exciting developments:
- Energy Efficiency: New designs and materials are improving energy efficiency, reducing fuel consumption and emissions.
- Compact Designs: Manufacturers are creating smaller, more powerful motors, allowing for more flexible machine designs.
- Smart Technology: Integrating sensors and data analytics into hydraulic motors improves performance and reliability.
Sustainability is a growing concern in the hydraulic industry. Efforts are being made to:
- Use Biodegradable Fluids: Reducing the environmental impact of hydraulic systems.
- Improve Recycling Processes: Making it easier to recycle hydraulic components.
- Reduce Energy Consumption: Developing more efficient hydraulic systems.
Hydraulic motors are sophisticated devices that depend on a constellation of precisely engineered components to transform fluid pressure into rotational motion. Recognizing the significance of these components—gears, pistons, vanes, and actuators—is crucial for optimizing performance and mitigating potential failures. By appreciating the role of each part and adhering to a schedule of proper maintenance, users can ensure the continued efficiency and longevity of their hydraulic systems.
Here are some frequently asked questions about hydraulic motors:
Hydraulic motors are designed to convert the kinetic energy of fluid flow into rotary mechanical power. They are used in various applications to transmit power in a controlled manner.
Hydraulic motors can fail due to failed seals, clogged case drain filters, or issues with gear oil in planetary hubs. Regular maintenance is crucial to prevent these failures.
Displacement refers to the volume of fluid needed to turn the output shaft of a hydraulic motor by one full rotation. It is typically measured in cubic inches or cubic centimeters per revolution.
Hydraulic motors are rated based on displacement, pressure rating, torque, flow rate, and power. These characteristics determine the motor's suitability for specific applications.
A hydraulic motor and a final drive are not exactly the same. A final drive often includes a speed-reducing planetary gear system attached to the motor to increase output torque.
