Hydraulic winches are powerful tools used in various industries, including construction, marine, and automotive, for lifting and pulling heavy loads. Understanding the hydraulic requirements, particularly the gallons per minute (GPM) needed, is crucial for efficient operation. In this article, we will delve into the world of hydraulic winches, exploring their components, working principles, and the factors that determine the required GPM.

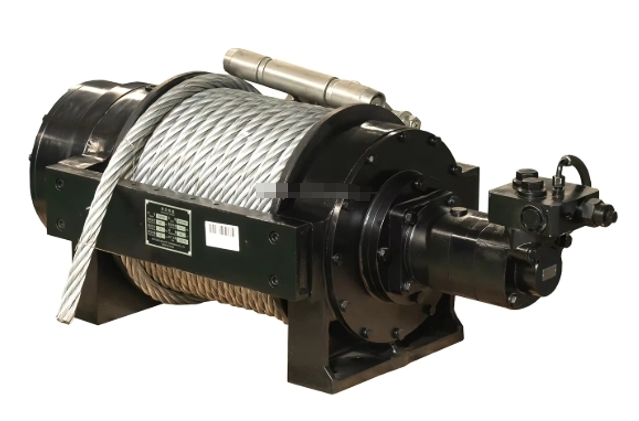

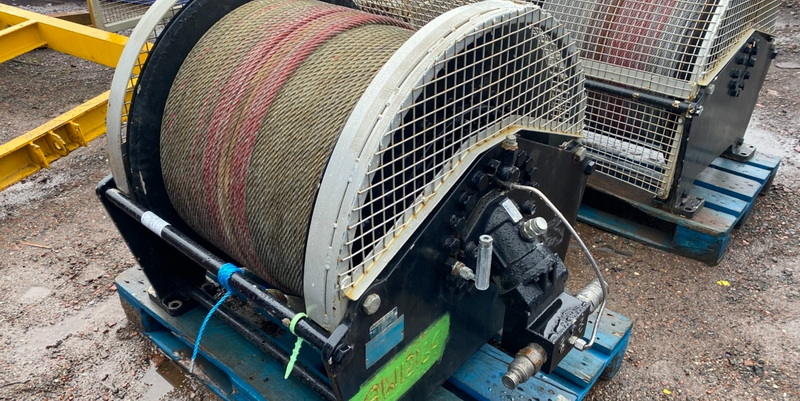

Hydraulic winches operate by converting hydraulic energy into mechanical force, allowing them to pull or lift heavy loads with ease. The key components include a hydraulic pump, hydraulic motor, winch drum, and control valves.
- Hydraulic Pump: This is responsible for pressurizing the hydraulic fluid, which is then directed to the hydraulic motor.
- Hydraulic Motor: Converts the hydraulic energy into rotational motion, driving the winch drum.
- Winch Drum: The drum onto which the cable or rope is wound.
- Control Valves: Regulate the flow of hydraulic fluid to control the winch's speed and direction.
The hydraulic pump pressurizes the hydraulic fluid, which is then directed to the hydraulic motor. The motor converts this fluid energy into rotational motion, driving the winch drum. As the drum rotates, it winds or unwinds the cable, depending on the direction of the fluid flow controlled by the valves.
The GPM required for a hydraulic winch depends on several factors, including the winch's line pull capacity, line speed, and the hydraulic system's efficiency.
The line pull capacity refers to the maximum weight the winch can pull. Higher capacities require more powerful hydraulic systems, which often demand higher GPM rates.
- Example: A winch with a line pull capacity of 12,000 lbs might require a hydraulic system capable of delivering between 15 to 45 liters per minute (L/min) at a certain pressure.
The line speed is how fast the winch winds the cable onto the drum. Faster line speeds require more hydraulic fluid flow to maintain the desired speed.
- Example: A winch operating at a high speed might need a higher GPM to ensure consistent performance.
The efficiency of the hydraulic system, including the pump and motor, affects how much GPM is needed. More efficient systems can achieve the same performance with lower GPM rates.
- Example: A highly efficient planetary gearbox in a hydraulic winch can optimize performance while minimizing fluid flow requirements.
To determine the GPM needed for a hydraulic motor, you can use the formula:
GPM=(Motor Displacement×Motor RPM)/231
This formula helps engineers calculate the required flow rate based on the motor's specifications and desired speed.
Different hydraulic winches have varying GPM requirements based on their specifications and applications.
- Low to Medium Duty: Winches for lighter applications might require around 3 to 15 GPM, depending on the line pull and speed.
- Medium to High Duty: For heavier applications, winches may need between 15 to 45 L/min (approximately 4 to 12 GPM).

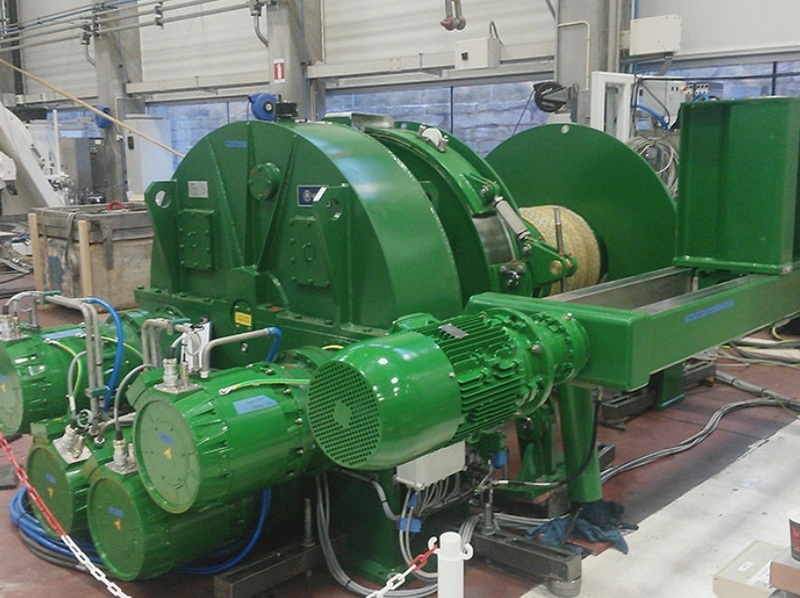

- Heavy Duty: Large industrial winches can require significantly higher GPM rates, often exceeding 100 L/min (about 26 GPM).
When designing a hydraulic system for a winch, several factors must be considered to ensure optimal performance and efficiency.
The hydraulic pump should be selected based on its ability to deliver the required flow rate at the desired pressure. For instance, if a winch needs 18 GPM for its line speed, the pump must be capable of delivering this flow rate at the engine speed used by the power take-off (PTO).
The pressure in a hydraulic winch is crucial for its lifting capacity and speed. Higher pressures typically allow for greater lifting forces but require more robust components to handle the stress.
The design of the hydraulic system, including pipe diameter and hose length, affects the flow rate and pressure. Larger pipes and shorter hoses can reduce pressure losses, ensuring more efficient operation.
Hydraulic winches are often used in harsh environments, such as offshore locations, where they can pose environmental risks due to potential oil leaks. Regular maintenance and proper system design are essential to mitigate these risks.
Recent advancements in hydraulic winch technology focus on improving efficiency and reducing environmental impact.
Using variable displacement motors can enhance the performance of hydraulic winches by allowing for more precise control over the flow rate and pressure. This can lead to increased load capacity and smoother operation.
Compact hydraulic winches, like those used in trenchless construction, are designed to be versatile and efficient, utilizing the carrier machine's hydraulic system for power.
Industrial winches have undergone significant transformations to enhance efficiency, safety, and performance. Innovations include the use of synthetic ropes, advanced control systems, and smart technology integration.
Synthetic ropes offer advantages over traditional steel cables, including reduced weight and improved flexibility. They also enhance safety by reducing the risk of recoil in case of failure.
Modern winches are equipped with sophisticated control interfaces that allow for precise load management, speed control, and real-time monitoring. These systems enhance operator control, improve safety, and contribute to more efficient operations.
The integration of IoT technology enables remote monitoring, performance optimization, and predictive maintenance. Smart winches can be integrated into broader industrial ecosystems, providing real-time insights into usage patterns and allowing for proactive decision-making.
Hydraulic winches are generally stronger than electric winches, making them suitable for heavy-duty applications. However, electric winches offer advantages in terms of efficiency and noise levels, making them ideal for lighter-duty tasks.
- Hydraulic Winches: Known for their raw power and strength, hydraulic winches are ideal for heavy-duty applications. They can handle massive weights and withstand harsh environments but may be less efficient and noisier.
- Electric Winches: Electric winches are reliable and efficient, suitable for lighter-duty applications. They are quieter and more environmentally friendly but may require complex electrical installations and are sensitive to environmental conditions.
Regular maintenance is crucial for extending the lifespan of hydraulic winches and ensuring optimal performance. Common issues include fluid leaks, worn seals, and clogged filters.
- Regular Fluid Checks: Ensure the hydraulic fluid level is adequate and check for signs of contamination or degradation.
- Seal Inspection: Regularly inspect seals for wear and replace them as needed to prevent leaks.
- Filter Maintenance: Clean or replace filters regularly to maintain fluid flow and prevent clogs.
- Low Pressure: Check for leaks, clogged filters, or insufficient fluid levels.
- Slow Operation: Inspect for worn components, incorrect fluid viscosity, or insufficient GPM.
Hydraulic winches are versatile and powerful tools, but their performance depends heavily on the correct hydraulic setup, including the GPM. Understanding the factors that influence GPM requirements is essential for selecting and operating a hydraulic winch efficiently. Whether for construction, marine, or automotive use, ensuring the right GPM will enhance the winch's capability to handle heavy loads safely and effectively.
The typical GPM range for hydraulic winches varies widely depending on the application, from as low as 3 GPM for small winches to over 26 GPM for heavy-duty models.
A higher line pull capacity generally requires a more powerful hydraulic system, which often means a higher GPM to ensure sufficient power for lifting or pulling heavy loads.
Faster line speeds require more hydraulic fluid flow to maintain performance. Therefore, winches with higher line speeds typically need higher GPM rates.
Yes, you can use a pump with a higher GPM than needed, but it may be inefficient and unnecessary, potentially leading to wasted energy and increased costs.
More efficient hydraulic systems can achieve the same performance with lower GPM rates, making them more cost-effective and environmentally friendly.
