Choosing the right hydraulic oil for a winch is crucial for ensuring optimal performance, efficiency, and longevity of the hydraulic system. Hydraulic winches are widely used in various industrial and marine applications, such as lifting heavy loads on ships, construction sites, and in manufacturing facilities. This article will delve into the key considerations for selecting hydraulic oil, explore different types of hydraulic oils suitable for winches, and discuss maintenance practices to extend the life of the hydraulic system.

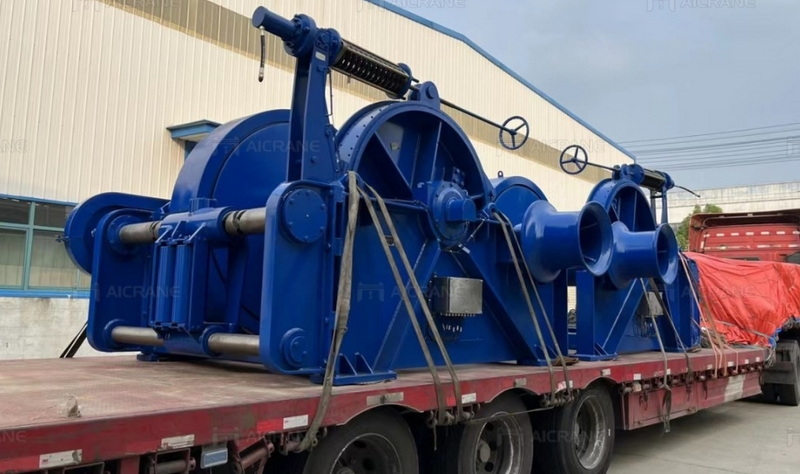

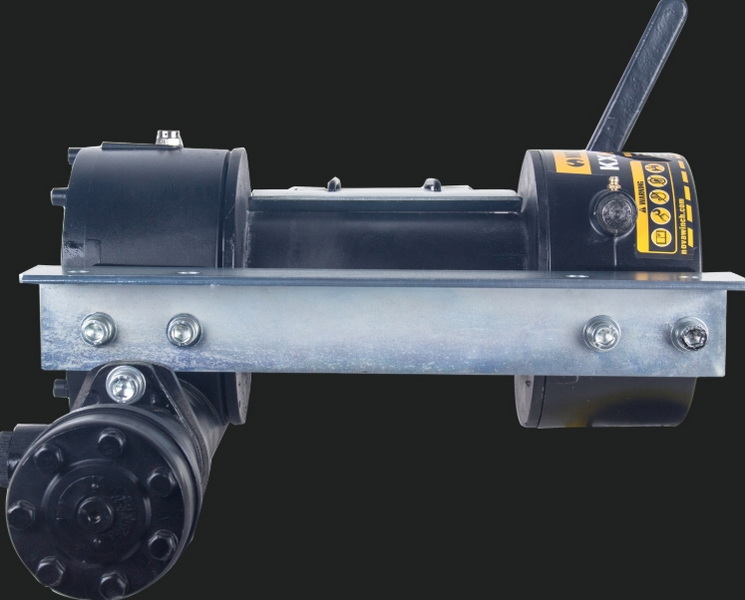

Hydraulic winches operate by using fluid power to generate the force needed to lift or pull heavy loads. They consist of a motor, pump, hydraulic lines, and a winch drum. The motor drives the pump, which pressurizes the hydraulic oil, transmitting power through the system to perform the desired action.
A hydraulic winch system typically includes:
- Motor: Provides the power to drive the pump.
- Pump: Pressurizes the hydraulic oil.
- Hydraulic Lines: Carry the pressurized oil to the winch.
- Winch Drum: Holds the cable or rope used for lifting or pulling.
Hydraulic oil plays a vital role in the operation of a winch. It acts as a medium to transmit power, lubricates moving parts, and helps cool the system. The right viscosity and type of hydraulic oil are essential for maintaining system efficiency and preventing damage.
1. Viscosity: The viscosity of the oil affects its flow characteristics and ability to transmit power efficiently. Too low viscosity can lead to insufficient pressure, while too high viscosity may cause increased energy consumption and reduced performance in cold temperatures.
2. Lubricity: Good lubrication is crucial for reducing wear on moving parts and extending the life of the hydraulic system.
3. Thermal Stability: The oil should maintain its properties over a wide temperature range to ensure consistent performance.
4. Corrosion Protection: The oil should protect metal components from corrosion, especially in marine environments.
5. Foam Resistance: Anti-foaming properties help maintain oil performance under continuous mechanical agitation.
- Monograde Oils: Suitable for systems with a narrow operating temperature range. They maintain a consistent viscosity across this range.
- Multigrade Oils: Offer better performance across a wide temperature range by using viscosity index improvers. However, these additives can affect air separation properties and may degrade over time.
- AW 32: Often used in winches due to its moderate viscosity, suitable for most ambient temperatures.
- AW 46: Commonly used in marine cranes and suitable for temperate regions.
- AW 68: Used in subtropical regions due to its higher viscosity. AW 68 is particularly beneficial for marine winches as it provides high load capacity and corrosion resistance, ensuring smooth operation in harsh environments[1].
Viscosity Grades and Applications
| Viscosity Grade | Typical Use |
|---|---|
| AW 32 | General Use |
| AW 46 | Marine Cranes, Temperate Regions |
| AW 68 | Subtropical Regions, Marine Winches |
In recent years, environmental concerns have become increasingly important in industrial operations. Traditional hydraulic oils can be harmful if they leak or are disposed of improperly. Therefore, using biodegradable lubricants can mitigate environmental risks by reducing the impact of spills and improving sustainability.
- Rapid Degradation: These oils break down quickly, minimizing long-term environmental damage.
- Renewable Sources: Often derived from renewable sources, supporting sustainable practices.
- Reduced Waste: Encourages responsible disposal and recycling of winch components.
- Shell Panolin S4 HLP Synth EAL: Offers high biodegradability and is suitable for environmentally sensitive areas. It meets the requirements of ISO 15380 HEES and achieves a biodegradability of over 60% after 28 days according to the OECD 301B test[3].
- Castrol Performance Bio HE 46: Designed for use in systems where fluid leakage could contaminate groundwater. It is highly biodegradable, with over 90% biodegradability according to the CEC L-33-A-93 test[8].
Regular maintenance is essential to ensure the longevity and efficiency of hydraulic winches. This includes:
1. Oil Change: Regularly check and change the hydraulic oil to prevent contamination and degradation.
2. Filtering: Use filters to keep the oil clean and free from debris.
3. System Inspection: Regularly inspect the system for leaks, worn components, and proper alignment.
A tug boat used Shell Tellus 46 hydraulic oil in its winch system. Due to high temperatures and contamination, the oil's condition deteriorated significantly. Installing a CJC hydraulic filter improved the oil cleanliness, enhancing system reliability and extending component life.
- Insufficient Pressure: Often caused by incorrect oil viscosity, pump issues, or control valve problems.
- Overheating: Can be due to incorrect oil, insufficient cooling, or excessive load.
- Leaks: Regularly inspect and replace seals and hoses to prevent leaks.
Troubleshooting hydraulic winches involves identifying issues such as slow operation, leaks, or abnormal noises. Here are some steps to follow:
1. Identify the Problem: Observe the winch's behavior and gather information about the symptoms.
2. Inspect Components: Check hydraulic hoses, fittings, seals, valves, and the pump for signs of damage or wear.
3. Check Hydraulic Fluid: Ensure the fluid level is correct and inspect for contamination or degradation.
In addition to basic troubleshooting, advanced diagnostic techniques can be employed to identify complex issues. These include:
1. Pressure Testing: Use pressure gauges to measure system pressure at various points.
2. Flow Testing: Measure the flow rate of the hydraulic fluid to identify blockages or inefficiencies.
3. Oil Analysis: Conduct regular oil analysis to monitor the condition of the hydraulic fluid and detect potential problems early.
Electric winches are gaining popularity due to their efficiency and reduced environmental impact. They eliminate the risk of hydraulic oil leaks, which can be a significant environmental concern in sensitive areas. Additionally, electric winches offer better motor efficiency and lower standby power consumption, making them a cost-effective option for many applications.
- Environmental Safety: No risk of oil spills or leaks.
- Energy Efficiency: Lower power consumption compared to hydraulic systems.
- Operational Simplicity: Easier to maintain and operate.
| Feature | Hydraulic Winches | Electric Winches |
|---|---|---|
| Environmental Impact | Risk of oil leaks and spills | No risk of oil leaks |
| Energy Efficiency | High energy consumption | Lower power consumption |
| Maintenance | Complex maintenance | Simpler maintenance |
| Operational Cost | Higher operational costs | Lower operational costs |
Some hydraulic oils are specifically designed for certain applications. For example, Q8 Haydn 46 is recommended for OMAC Italy winches and tensioners, offering zinc-based additives for advanced wear resistance and excellent water separation properties[2].
Hydraulic fluid additives can enhance the performance and longevity of hydraulic systems. For instance, INDUS-234 Hydraulic Fluid Additive increases oil resistance to oxidation, prevents pump wear, and protects against rust and corrosion. These additives can improve system efficiency by reducing friction and wear, allowing for smoother operation and lower operating temperatures.
Hydraulic winches are crucial in offshore oil and gas operations, where they are used for lifting and deploying equipment in harsh marine environments. Their high power-to-weight ratio and adaptability to extreme conditions make them ideal for these applications[4].
Choosing the right hydraulic oil for a winch is critical for optimal performance and longevity. Factors such as viscosity, lubricity, and thermal stability must be considered. Regular maintenance practices like oil changes and filtering are also essential for ensuring the hydraulic system operates efficiently and safely. Additionally, adopting eco-friendly practices by using biodegradable lubricants can reduce environmental impact. As technology advances, electric winches offer a promising alternative for those seeking to minimize environmental risks and improve operational efficiency.
The most common viscosity grades for winches are AW 32 and AW 46, depending on the operating environment and temperature range.
Hydraulic oil should be changed regularly, typically every 1,000 to 2,000 hours of operation, depending on usage and environmental conditions.
Using the wrong viscosity can lead to insufficient pressure, increased wear on components, and reduced system efficiency.
While ATF can be used in some simple hydraulic systems, it is not recommended for heavy-duty winches due to its lower viscosity and lack of anti-wear additives.
Temperature affects the viscosity of hydraulic oil. In cold temperatures, higher viscosity oils may become too thick, while in hot temperatures, they may become too thin, affecting system performance.
