When it comes to selecting the right hydraulic motor for a 60-inch mowing deck, several factors need to be considered to ensure optimal performance and efficiency. This article will delve into the key considerations and provide guidance on choosing the appropriate hydraulic motor size.
Hydraulic motors are widely used in lawn mowers, especially in zero-turn and ride-on mowers, due to their ability to provide smooth and efficient power transmission. Unlike traditional mechanical systems, hydraulic systems offer advantages such as reduced vibration, increased reliability, and easier maintenance.

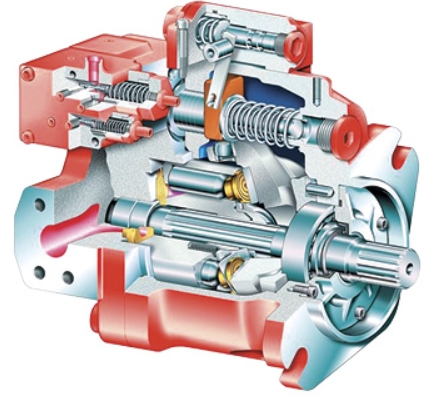

Hydraulic motors convert hydraulic fluid pressure into mechanical energy. They are typically connected to a hydraulic pump, which supplies the pressurized fluid. The motor then converts this pressure into rotational energy, which powers the mower deck.
The power required to run a 60-inch mowing deck depends on several factors, including the type of vegetation being cut, the desired cutting speed, and the terrain. Generally, a larger deck requires more power to maintain efficiency. For a 60-inch deck, the typical power requirement ranges from 15 to 25 HP, with some commercial mowers featuring engines up to 29 HP, such as the Kubota ZD1611RL-60R, which has a gross power of 30.8 HP[1].
Power Requirements for Different Mowing Decks
| Deck Size | Typical Power Requirement |
|---|---|
| 48 inches | 10-15 HP |
| 60 inches | 15-25 HP |
| 72 inches | 25-35 HP |
The hydraulic system's specifications, such as fluid flow rate and pressure, are crucial in determining the motor size. A higher flow rate and pressure typically require a larger motor. It's also important to consider the type of hydraulic fluid used, as different fluids may require special seals or technologies.
Hydraulic motor displacement (measured in cubic inches per revolution) and speed (measured in RPM) are key factors. A larger displacement motor can handle more fluid and provide more torque, while speed affects the motor's output power.
To calculate the required motor size, you need to consider the total power needed to drive the mower deck efficiently. This involves calculating the torque and speed requirements based on the deck's size and the type of cutting conditions.
Motor Size (HP) = Total Power Requirement (HP) / Motor Efficiency
Where:
- Total Power Requirement is based on the deck size and cutting conditions.
- Motor Efficiency is typically around 80-90% for hydraulic motors.
For a 60-inch deck requiring 20 HP, with a motor efficiency of 85%:
Motor Size = 20 HP / 0.85 ≈ 23.53 HP
Given that hydraulic motors are often specified in terms of displacement and speed, you would need to select a motor that can deliver this power output.

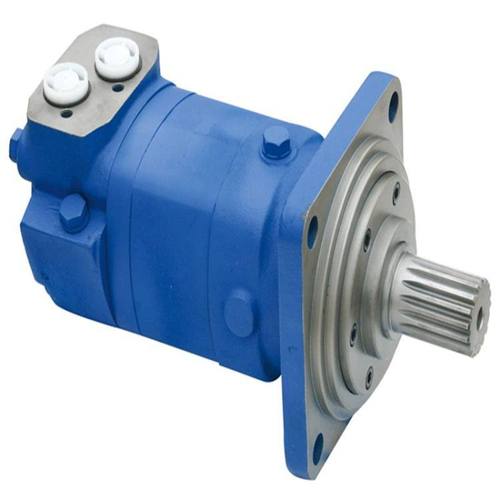

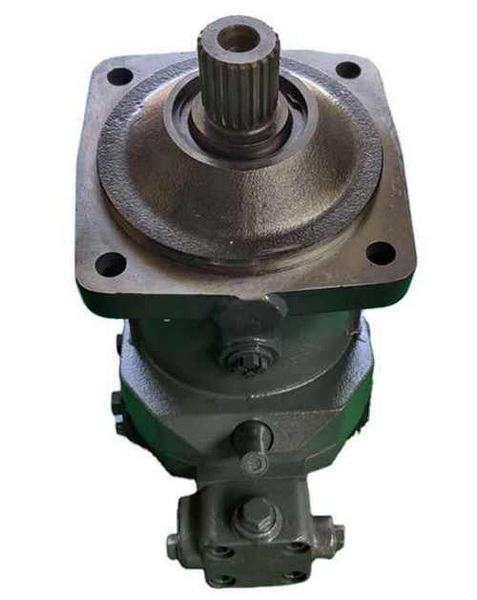

There are various hydraulic motors available on the market, each with different displacement and speed ratings. For a 60-inch mowing deck, a motor with a displacement of around 3-5 cubic inches per revolution and a speed range of 1000-2000 RPM is typically suitable.
Example Hydraulic Motor Specifications
| Motor Model | Displacement (cu.in/rev) | Speed (RPM) | Power Output (HP) |
|---|---|---|---|
| Model A | 3 | 1500 | 20 |
| Model B | 4 | 1200 | 25 |
| Model C | 5 | 1000 | 30 |
Proper maintenance is crucial for extending the life of hydraulic motors and ensuring they operate efficiently. This includes regular checks on hydraulic fluid levels, filter cleanliness, and belt tension. For zero-turn mowers, maintenance tasks such as greasing the mower and replacing air filters should be performed regularly.
Maintenance Schedule for Zero-Turn Mowers
| Maintenance Task | Frequency |
|---|---|
| Check Hydraulic Fluid Level | Daily |
| Change Hydraulic Oil and Filter | Every 250 Hours |
| Grease Mower | Every 100 Hours |
Hydraulic motors can generate significant heat, especially during prolonged operation. Cooling systems are essential to prevent overheating, which can reduce motor efficiency and lifespan. Some mowers incorporate heat transfer means into the mower deck or frame to act as a heat sink, utilizing airflow from the cutting blades to cool the hydraulic fluid.
In recent years, there has been an increased focus on environmental sustainability in lawn care equipment. Some hydraulic motors are designed to be more environmentally friendly by reducing fluid leakage and using biodegradable hydraulic fluids. Additionally, electric and hybrid models are emerging as alternatives to traditional hydraulic systems.
Gasoline-powered lawn mowers contribute significantly to air pollution, emitting harmful gases like carbon monoxide, carbon dioxide, and nitrogen oxides. Switching to electric or hybrid models can help reduce these emissions and contribute to a cleaner environment[4].
Hydrostatic transmissions are commonly used in lawn mowers to provide smooth power delivery. These systems rely on hydraulic fluid to transfer power from the engine to the wheels, allowing for precise speed control and reduced maintenance compared to traditional gear systems.
- Smooth Operation: Hydrostatic transmissions enable smooth acceleration and deceleration, improving operational efficiency.
- Low Maintenance: The absence of gears reduces wear and tear, resulting in lower maintenance needs.
- Infinite Speed Control: Users can select their desired speed precisely, enhancing mowing performance.
Regularly changing hydraulic fluid is crucial for maintaining the performance and longevity of zero-turn mowers. It is recommended to check the fluid every 100 hours and replace it after 1000 hours of operation.
Basic Steps for Changing Hydraulic Fluid:
1. Prepare Your Mower: Turn off the engine and level the mower.
2. Drain the Old Fluid: Place a bucket under the drain plug and remove it to drain the old fluid.
3. Refill with New Fluid: Use a funnel to fill the reservoir with new hydraulic fluid.
4. Check the Oil Level: Start the engine and check the oil level to ensure it is at the recommended level.
When working with hydraulic systems, safety is paramount. Always wear protective gear, such as gloves and safety glasses, when handling hydraulic components. Ensure the mower is turned off and the hydraulic system is depressurized before performing any maintenance tasks.
Common issues with hydraulic motors include overheating, fluid leaks, and reduced performance. Overheating can be addressed by improving cooling systems or reducing operating time. Fluid leaks should be repaired promptly to prevent system damage. Reduced performance may indicate worn components or improper fluid levels.
- Overheating: Check cooling systems and ensure proper airflow.
- Fluid Leaks: Inspect hoses and connections for damage.
- Reduced Performance: Check fluid levels and inspect for worn components.
Recent advancements in hydraulic motor technology include the development of high-efficiency motors that can operate at lower pressures while maintaining performance. These motors are designed to reduce energy consumption and minimize environmental impact.
- Energy Savings: High-efficiency motors consume less energy, reducing operational costs.
- Environmental Benefits: Lower energy consumption leads to reduced emissions.
- Increased Reliability: Advanced designs often result in longer motor lifespan.
Some modern lawn mowers incorporate electro-hydraulic lift mechanisms for the mower deck. These systems use an integrated electro-hydraulic actuator assembly to provide easy lifting of the deck, even when the engine is not running[3].
- Convenience: Easy deck lifting without needing to run the engine.
- Efficiency: Reduced power requirements compared to direct electrical motors.
- Compact Design: Smaller package size enhances overall mower design.
Choosing the right size hydraulic motor for a 60-inch mowing deck involves careful consideration of power requirements, hydraulic system specifications, and motor displacement and speed. By understanding these factors and performing the necessary calculations, you can select a motor that provides efficient and reliable operation.
The typical power requirement for a 60-inch mowing deck ranges from 15 to 25 HP, depending on the cutting conditions and desired efficiency.
To calculate the required motor size, divide the total power requirement by the motor efficiency. Ensure you consider the deck size and cutting conditions when determining the total power needed.
Hydraulic motors offer advantages such as reduced vibration, increased reliability, and easier maintenance compared to traditional mechanical systems.
The choice of hydraulic motor displacement and speed depends on the required torque and power output. A larger displacement provides more torque, while speed affects the motor's output power.
Ensure the hydraulic system is properly sized by matching the pump's flow rate and pressure to the motor's requirements. This ensures efficient operation and prevents system overload.
