Ramsey hydraulic winches are robust and reliable tools used in various industries for lifting and moving heavy loads. Proper maintenance, including regular oil changes, is crucial to ensure these winches operate efficiently and safely. In this article, we will guide you through the process of filling your Ramsey hydraulic winch with the correct type of oil and provide tips on maintenance and troubleshooting.

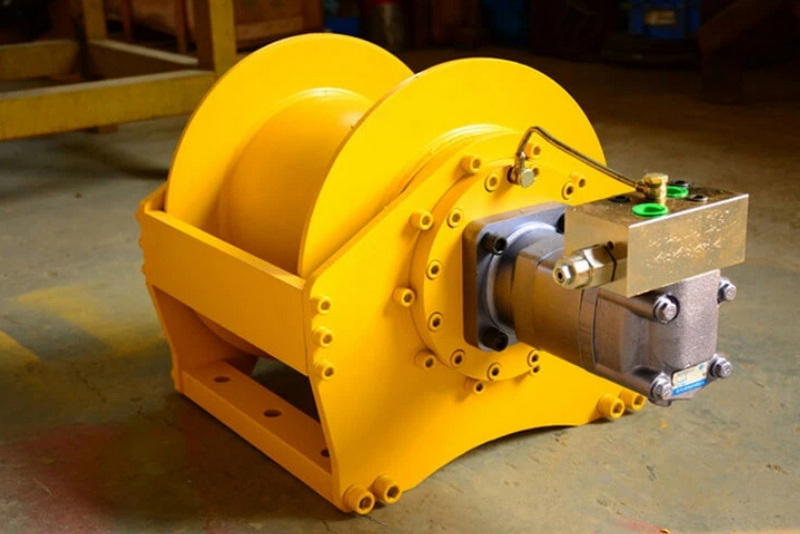

Ramsey hydraulic winches are designed with durability and performance in mind. They are widely used in industrial settings, such as construction sites and heavy-duty towing operations. The hydraulic system in these winches relies on oil to lubricate moving parts and maintain pressure.
- Hydraulic Motor: Converts hydraulic pressure into mechanical energy.
- Gearbox: Transfers power to the winch drum.
- Winch Drum: Holds the wire rope.
- Control Valve: Manages the flow of hydraulic fluid.
Regular maintenance is essential to extend the lifespan of your winch and ensure it operates smoothly.
1. Check Oil Level: Ensure the oil level is at the recommended mark. If oil is leaking, identify and repair the leak.
2. Pressure Relief Plug: Verify that the pressure relief plug is not clogged.
3. Cable Lubrication: Apply light oil to the cable to prevent rust and wear.
1. Winch Mounting Bolts: Check and tighten any loose bolts. Replace missing bolts with grade 5 or better.
2. Cable Inspection: Inspect the cable for fraying or broken strands. Replace immediately if damaged.
3. Grease Fittings: Lubricate the various grease fittings located in the cable drum, end bearing, clutch housing, or clutch operating linkage. Use a good grade of moly-disulfide containing grease.
1. Oil Change:
- Drain the oil from the winch.
- Fill with clean kerosene, run the winch briefly, then drain the kerosene.
- Refill with the recommended gear oil (e.g., SAE 80W-140).
2. Structural Inspection:
- Check the frame and surrounding structure for cracks or deformation.
Filling the oil in your Ramsey hydraulic winch involves several steps:
1. Locate the Oil Level Plug:
- This is usually marked on the winch.
2. Drain Old Oil:
- Use a drain pan to catch the old oil. You may need specialized tools like a JIC fitting for easier draining, as shown in this video:
3. Clean with Kerosene:
- Fill the winch with clean kerosene.
- Run the winch for a few seconds without load in the reel-in direction.
- Drain the kerosene.
4. Refill with Gear Oil:
- Use all-purpose SAE 80W-140 gear oil.
- Fill to the oil level plug.
- Use the Correct Oil: Always use the recommended type of gear oil to ensure compatibility and performance.
- Avoid Overfilling: Leave enough space for oil expansion.
- Cleanliness: Ensure the area is clean to prevent contamination.
- Possible Causes: Damaged seals, too much oil, or a damaged gasket.
- Corrections: Replace seals, drain excess oil, or replace the gasket.
- Possible Causes: Low flow rate or a worn-out hydraulic motor.
- Corrections: Check flow rate or replace the motor.
- Possible Cause: Air in the hydraulic system.
- Correction: Bleed air from the brake.
- Symptoms: Solenoid clicks without input from the remote.
- Solution: Check for faulty solenoids and replace if necessary.
- Symptoms: Fraying or snapping of the cable.
- Solution: Regularly inspect the cable and replace if damaged.
- Symptoms: Faulty wiring or weak signal.
- Solution: Inspect wiring and ensure devices are within range.
- Symptoms: Oxidized connections or rusty components.
- Solution: Clean connections and apply protective coatings.
If your winch requires more extensive maintenance, such as replacing worn-out parts or cleaning the hydraulic system thoroughly, consider the following steps:
1. Disassembly: Carefully disassemble the winch to access internal components.
2. Inspection and Replacement: Inspect each part for wear and replace as necessary.
3. Reassembly: Follow the manufacturer's instructions for reassembling the winch.
- Oil-Cooled Brake: Adjust the brake according to the manufacturer's specifications to ensure proper operation.
Ensure the winch is securely mounted to prevent misalignment and damage. Use high-strength bolts and ensure all connections are tightened to the recommended torque specifications.
Install the cable correctly to avoid kinking or fraying. Always follow the manufacturer's guidelines for cable installation and tensioning.
Regularly inspect the hydraulic system for leaks or damage. Check hoses for signs of wear and replace them if necessary.
Wear appropriate PPE, such as gloves and safety glasses, when operating a winch to protect yourself from potential hazards[3][6].
Maintain a safe distance from the winch cable during operation to avoid injury from a snapped cable[3][6].
Regularly inspect the winch for signs of wear or damage to prevent major issues. Check for rust, corrosion, or worn-out components.
If you are unsure about any maintenance or repair procedures, consider seeking assistance from a professional mechanic or winch specialist. They can provide expert advice and ensure that repairs are done correctly.
Always refer to your winch's manual for specific maintenance and troubleshooting instructions. The manual provides detailed information tailored to your winch model.
Keep the winch cable dry and clean to prevent debris accumulation that could harm the winch drum. Regularly lubricate the cable with light oil to prevent rust and wear[4].
Ensure the cable is evenly and tightly wound onto the drum to prevent knots or tangles. This aids in smooth operation and reduces the risk of cable damage[4].
Use your winch regularly to keep the gears lubricated and prevent moisture buildup. This can be done by running the winch in freespool mode and respooling the cable[7].
Run the winch at least once a month to generate heat and prevent moisture accumulation. Warm up the motor before lubricating the gears for effective distribution[4].
Maintaining your Ramsey hydraulic winch is crucial for its longevity and performance. Regular oil changes, inspections, and troubleshooting can help prevent major issues. Always refer to your winch's manual for specific instructions tailored to your model.
The recommended oil for most Ramsey hydraulic winches is all-purpose SAE 80W-140 gear oil. However, always check your specific model's manual for any variations.
Oil should be changed annually or more frequently if the winch is used extensively. Regular oil changes help maintain the winch's performance and longevity.
Signs of worn-out seals include oil leaks around the seals. If you notice any leaks, inspect and replace the seals promptly to prevent further damage.
It is not recommended to use a different type of oil unless specified by the manufacturer. Using the wrong oil can lead to compatibility issues and damage the winch.
To bleed air, loosen the bleeder fitting on the brake while slowly applying hydraulic pressure. Allow air to escape until the brake releases smoothly.
