Views: 222 Author: Ella Publish Time: 2025-04-19 Origin: Site
Content Menu
● Understanding Hydraulic Winches for Trucks
>> The Science Behind Winch Sizing
● How to Calculate the Right Winch Size
>> Step 1: Determine Your Truck's Gross Vehicle Weight Rating (GVWR)
>> Step 2: Apply the Industry Standard Formula
>> Step 3: Consider Your Typical Recovery Scenarios
>> Step 4: Account for Cable Layers
● Popular Hydraulic Winch Sizes and Their Applications
● Hydraulic vs. Electric Winches: A Quick Comparison
● Installation Considerations for Hydraulic Winches
>> Hydraulic System Requirements
>> Controls
● Troubleshooting and Maintenance Tips
● Visual Guide: Hydraulic Winch Operation and Sizing
>> How to Operate a Hydraulic Winch for Truck
● Advanced Tips for Choosing and Using a Hydraulic Winch
>> Synthetic Rope vs. Steel Cable
>> Remote Controls and Automation
● Hydraulic Winch Accessories and Upgrades
>> Upgrades for Heavy-Duty Use
● Safety Best Practices for Hydraulic Winch Operation
● FAQ: Hydraulic Winch for Truck
>> 1. How do I calculate the right hydraulic winch size for my truck?
>> 2. What are the main advantages of a hydraulic winch for truck use?
>> 3. Can I install a hydraulic winch on any truck?
>> 4. How do I maintain my hydraulic winch for truck?
>> 5. What should I do if my hydraulic winch stops working?

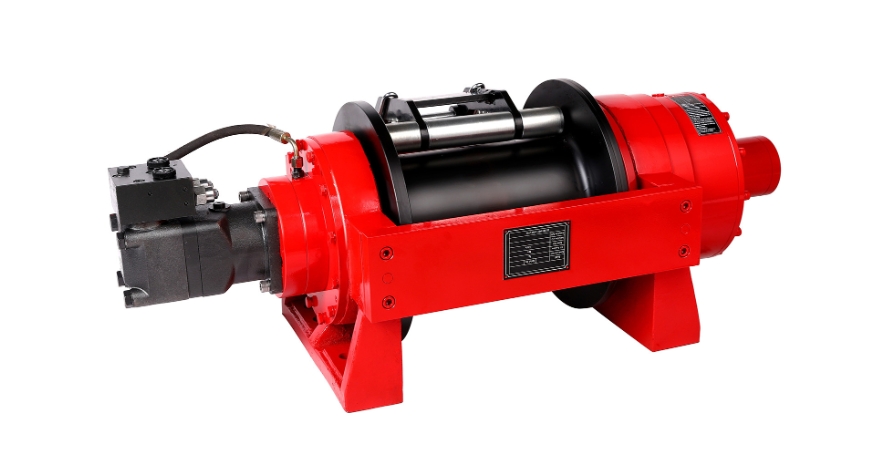

A hydraulic winch for truck is a specialized tool powered by your vehicle's hydraulic system, designed to provide reliable and continuous pulling power in the most demanding conditions. Unlike electric winches, which draw power from your truck's battery, hydraulic winches tap into the power steering pump or a dedicated hydraulic pump, allowing for uninterrupted operation as long as the engine is running. This makes them ideal for commercial recovery, off-road adventures, construction, and industrial applications where reliability and endurance are paramount.
Hydraulic winches are constructed with robust materials, heavy-duty gears, and high-tensile cables or synthetic ropes. Their design allows them to perform in harsh environments, including mud, water, snow, and extreme temperatures. The continuous duty cycle is a significant advantage, as hydraulic winches do not overheat like electric models, making them suitable for prolonged and repeated use.
Selecting the correct hydraulic winch size for your truck is crucial for both safety and performance. An undersized winch may struggle or fail during recovery operations, potentially causing damage to your vehicle or creating dangerous situations. Conversely, an oversized winch, while offering a greater safety margin, can add unnecessary weight, increase installation complexity, and lead to higher costs.
Winch size is typically expressed in terms of pulling capacity, measured in pounds (lbs). This capacity is determined by the winch's motor strength, gear ratio, drum size, and cable or rope strength. The right size ensures that your winch can handle your truck's weight plus any additional resistance from obstacles like mud, sand, or steep inclines.
Imagine attempting to recover a fully loaded pickup truck from a deep ditch with a winch that's rated below your vehicle's actual weight. The winch could stall, the cable might snap, or the mounting hardware could fail, putting you and your equipment at risk. On the other hand, using a properly sized hydraulic winch for truck recovery ensures smooth, controlled, and safe operation.
The GVWR is the maximum total weight your truck is rated to safely carry, including passengers, cargo, and fluids. This information can usually be found on a sticker inside the driver's door or in your owner's manual.
The standard recommendation is to select a winch with a pulling capacity of at least 1.5 times your truck's GVWR:
Winch Capacity = GVWR × 1.5
This multiplier accounts for additional resistance encountered during real-world recoveries, such as sticky mud, deep sand, or steep hills.
Example Calculation:
If your truck's GVWR is 8,000 lbs, then:
8,000 × 1.5 = 12,000 lbs
You should choose a hydraulic winch for truck applications rated at least 12,000 lbs.
- Off-roaders: If you frequently tackle mud, snow, or rocky trails, consider sizing up to handle unexpected resistance.
- Commercial operators: If you tow or recover other vehicles, size your winch for the heaviest load you expect to handle.
- Construction/industrial: Factor in the weight of equipment or materials you may need to move.
Winch ratings are based on the first layer of cable on the drum. As more cable is spooled out, the effective pulling power decreases. If you often use most of your cable, select a winch with a higher capacity to compensate for this loss.
| Winch Capacity (lbs) | Typical Vehicles/Use Cases | Hydraulic Winch for Truck Examples |
|---|---|---|
| 9,000 | Light pickups, mid-size SUVs | Weekend off-roading, light recovery |
| 12,000 | Full-size trucks, large SUVs | General recovery, moderate towing |
| 15,000 | Heavy-duty pickups, flatbeds | Commercial, industrial, heavy recovery |
| 20,000–30,000+ | Tow trucks, equipment haulers | Severe-duty, construction, large loads |
Case Study:
A Ram 3500 with a GVWR of 14,000 lbs should use at least a 21,000-lb winch. For commercial towing, a 22,000-lb or 25,000-lb hydraulic winch for truck use is recommended.
| Feature | Hydraulic Winch for Truck | Electric Winch for Truck |
|---|---|---|
| Power Source | Hydraulic system (engine running) | Battery (can operate with engine off) |
| Duty Cycle | Continuous, no overheating | Limited by heat, may overheat |
| Pulling Power | Higher for similar size | Lower for similar size |
| Weight | Heavier | Lighter |
| Maintenance | Hydraulic fluid, hoses | Electrical connections, solenoids |
| Installation | More complex | Easier, plug-and-play |
Hydraulic winches are the preferred choice for professionals who need reliability and power for demanding jobs, while electric winches are suitable for occasional use and lighter vehicles.
Ensure your truck's hydraulic system can supply the required flow (measured in gallons per minute, GPM) and pressure (measured in PSI) for the winch. Some trucks may require a power take-off (PTO) or an upgraded hydraulic pump.
A hydraulic winch for truck applications must be securely mounted to a reinforced bumper or frame. Use high-strength hardware and follow manufacturer guidelines for installation. Improper mounting can lead to catastrophic failures during operation.
Use high-pressure hoses rated for your system's PSI. Route hoses away from heat sources and moving parts. Install shutoff valves and quick-disconnects for safety and maintenance.
Most hydraulic winches use manual lever controls, but remote and wireless options are available for added convenience and safety.
- Check hydraulic fluid levels regularly. Low fluid can cause slow or weak winch operation.
- Inspect hoses and fittings for leaks or damage. Replace as needed to prevent system failure.
- Examine the winch cable or rope for fraying, kinks, or wear. Replace if damaged.
- Test winch operation before heading into the field. Early detection of issues prevents problems in critical situations.
- Lubricate moving parts as recommended by the manufacturer. This extends the life of your winch.
1. Park the truck on stable ground and engage the parking brake.
2. Engage the hydraulic pump or PTO.
3. Use the control lever or remote to spool out the cable.
4. Attach the winch hook to a secure anchor point or recovery strap.
5. Stand clear of the cable and slowly begin winching.
6. Monitor the load and winch operation throughout the process.
7. Once recovery is complete, spool the cable evenly onto the drum.
Hydraulic winches can be configured for different line speeds and gear ratios. A higher gear ratio provides more pulling power but slower line speed, while a lower ratio offers faster spooling but less power. Choose the configuration that best matches your typical recovery needs.
- Steel cable is strong and abrasion-resistant but can be dangerous if it breaks under tension.
- Synthetic rope is lighter and safer but requires more maintenance and can degrade under UV exposure.
Many modern hydraulic winches for trucks now offer synthetic rope compatibility for increased safety and ease of handling.
Wireless remote controls allow you to operate the winch from a safe distance, reducing the risk of injury. Some advanced systems offer automatic load sensing and shutoff features for added safety.
- Snatch Blocks: Double your pulling power or change the direction of pull.
- Tree Savers: Protect anchor points and trees during recovery.
- Winch Dampers: Reduce the risk of injury if the cable snaps.
- Fairleads: Guide the cable onto the drum smoothly.
- Hydraulic System Coolers: Keep fluid temperatures down during extended use.
- Heavy-Duty Mounts: Reinforce your truck's frame or bumper for added safety.
- Wireless Remotes: Increase operator safety and flexibility.
- Inspect equipment before every use. Look for leaks, frayed cables, and loose hardware.
- Never exceed the winch's rated capacity. Overloading can cause catastrophic failure.
- Keep bystanders clear of the winch line. A snapped cable can cause serious injury.
- Use a winch damper or heavy blanket. This helps absorb energy if the cable breaks.
- Wear gloves and eye protection. Protect yourself from cable splinters and hydraulic fluid.
Choosing the right hydraulic winch for truck applications is about more than just numbers—it's about safety, efficiency, and peace of mind. By accurately calculating your truck's GVWR, considering your typical recovery scenarios, and factoring in installation and maintenance needs, you'll ensure your winch is ready for anything. Hydraulic winches offer unmatched power and reliability for those who demand the best from their equipment. Invest in quality, follow safety guidelines, and your hydraulic winch will serve you faithfully for years to come.
Use the formula: Winch Capacity = GVWR × 1.5. For example, if your truck's GVWR is 8,000 lbs, choose a winch rated at least 12,000 lbs.
Hydraulic winches provide continuous pulling power, resist overheating, and offer higher capacity compared to electric winches of similar size. They're ideal for heavy-duty and commercial applications.
You need a compatible hydraulic system—usually a power steering pump or PTO. Some trucks may require additional hydraulic components or professional installation.
Regularly check hydraulic fluid levels, inspect hoses and fittings for leaks, and examine the cable for wear. Keep all components clean and lubricated for optimal performance.
Check for hydraulic fluid leaks, ensure the pump is operating, and inspect control connections. If problems persist, consult your winch's troubleshooting guide or a qualified technician.
