Hydraulic winches are powerful tools used in various applications, including off-road vehicles, ships, and industrial settings. They rely on hydraulic systems to generate the force needed to pull or lift heavy loads. Understanding which vehicle components provide hydraulic power to operate a winch is crucial for effective use and maintenance. This article will delve into the components involved, their functions, and how they work together to power a hydraulic winch.
Hydraulic winches utilize fluid power to perform tasks that require significant force. They are designed to handle heavy-duty jobs and are commonly used in environments where electric winches may not be sufficient. The primary components of a hydraulic winch include a hydraulic motor, a pump, valves, and a drum. These components work together to convert hydraulic energy into mechanical energy, which is then used to pull or lift loads.

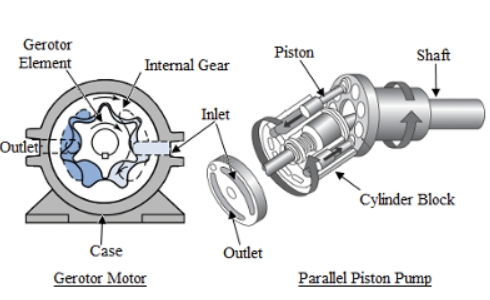

1. Hydraulic Motor: This is the heart of the winch, converting hydraulic energy into mechanical energy. It is typically connected to a gearbox to adjust speed and torque.
2. Pump: The pump is responsible for pressurizing the hydraulic fluid, which is then directed to the motor. Commonly, a vehicle's power steering pump is used for this purpose.
3. Valves: These control the flow and direction of hydraulic fluid. Directional control valves determine whether the winch pulls in or releases cable, while flow control valves regulate the speed of operation.
4. Drum: This is where the cable or rope is wound. The drum's rotation is controlled by the hydraulic motor and gearbox.
5. Gearbox: Often a planetary gearbox, it helps adjust the speed and torque of the winch to suit different tasks.
The operation of a hydraulic winch involves several steps:
1. Activation: The process begins when the vehicle's engine is started, powering the hydraulic pump.
2. Pressure Generation: The pump pressurizes hydraulic fluid, which is then directed through valves to the hydraulic motor.
3. Motor Activation: The pressurized fluid drives the hydraulic motor, converting hydraulic energy into mechanical energy.
4. Drum Rotation: The mechanical energy rotates the drum, either pulling in or releasing the cable.
5. Control: Valves control the direction and speed of drum rotation based on operator input.
To operate a hydraulic winch, several vehicle components are crucial:
1. Power Steering Pump: Often used as the hydraulic pump, it generates the pressure needed for the winch.
2. Hydraulic Reservoir: Stores the hydraulic fluid used in the system.
3. Hydraulic Hoses and Fittings: These connect the pump, valves, and motor, ensuring fluid flow throughout the system.
4. Directional Solenoid Valve: Controls the direction of fluid flow, determining whether the winch pulls in or releases cable.

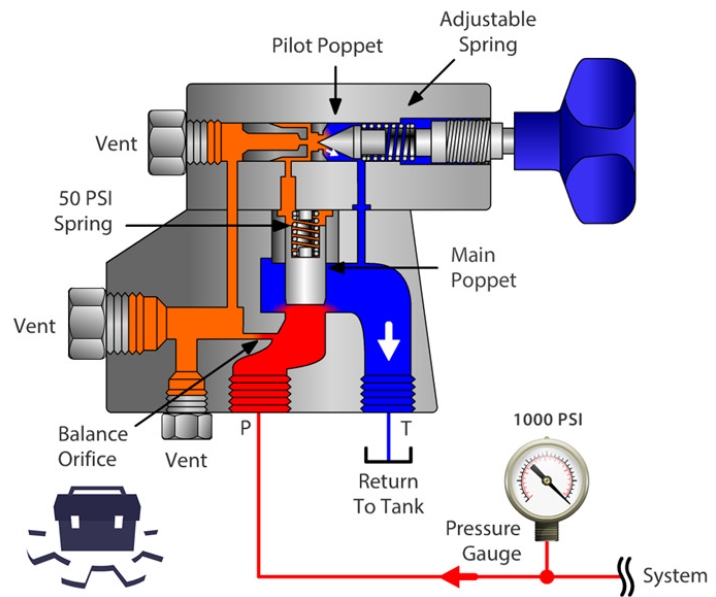

5. Relief Valve: Essential for safety, it prevents over-pressurization of the system.
Proper installation and maintenance are vital for the longevity and efficiency of a hydraulic winch. This includes ensuring all connections are secure, regularly checking fluid levels, and replacing worn parts.
Hydraulic winches offer several advantages over electric winches:
- High Power Capacity: They can handle heavier loads and provide more consistent power.
- Durability: Hydraulic winches are less prone to overheating and can operate continuously as long as the engine is running.
- Efficiency: They convert most of their energy into work, minimizing energy loss as heat.
Comparison Table: Hydraulic vs. Electric Winches
| Feature | Hydraulic Winches | Electric Winches |
|---|---|---|
| Power Capacity | High, suitable for heavy loads | Lower, may not handle extreme loads |
| Durability | Highly durable, less prone to overheating | Less durable, prone to overheating |
| Efficiency | High efficiency, minimal energy loss | Lower efficiency, significant energy loss as heat |
| Operation | Requires engine to be running | Can operate independently of engine |
Hydraulic winches are versatile and are used across various industries:
- Off-road and Recovery Vehicles: Essential for recovering vehicles stuck in challenging terrains.
- Marine and Shipping Industry: Used for mooring operations, anchor handling, and towing vessels.
- Construction and Building Projects: Facilitate safe and efficient lifting and positioning of heavy loads.
- Forestry and Logging Operations: Assist in moving heavy logs and equipment across rough terrains.
- Oil and Gas Industry: Employed for tasks such as pipe laying and equipment handling.
Companies like Hydra-Power Systems offer advanced solutions such as proportional dual winch manifolds. These manifolds provide precise control over winch speed and direction, allowing for delicate maneuvers in demanding environments. They are designed for seamless integration into existing hydraulic systems and are used in industries like construction, marine, and oil and gas.
Fixing a hydraulic winch requires systematic troubleshooting, inspection of hydraulic and electrical components, replacement of faulty parts, and thorough testing. Regular maintenance includes checking hydraulic fluid levels, inspecting for leaks, and ensuring all connections are secure.
Proportional control valves are a significant advancement in hydraulic winch technology. They allow for variable flow rates, enabling precise control over winch speed and direction. This technology is particularly useful in applications requiring delicate maneuvers, such as construction and marine operations.
Dual counterbalance valves are another important feature in hydraulic winches. They allow a winch to be reversed under load safely, preventing the load from running away or dropping. This is crucial in applications where precise control is necessary, such as in construction and heavy lifting tasks.
Capstan winches are specialized types of winches that use a rotating drum to pull or lift loads. They are often used in marine and construction environments due to their compact size and high pulling capacity. Advanced capstan winches feature pressure-fed lubrication, which reduces maintenance needs and enhances durability.
When installing a hydraulic winch, it's essential to choose a suitable location that is level, stable, and free from obstructions. The base of the winch must be securely fastened to support the weight of the winch and the load. Proper connection of hydraulic lines is critical to prevent leaks and ensure smooth operation.
Safety is paramount when working with hydraulic winches. Always wear protective gear such as safety glasses and gloves. Ensure that all electrical connections are secure and free from corrosion. Regularly inspect the winch for signs of wear or damage to prevent accidents.
As technology advances, hydraulic winches are likely to become even more sophisticated. Innovations in materials and design could lead to lighter, more efficient winches with enhanced durability. Additionally, advancements in control systems will provide operators with more precise control over winch operations, improving safety and productivity.
In recent years, there has been a growing focus on environmental sustainability in the use of hydraulic winches. This includes the development of eco-friendly hydraulic fluids and more efficient systems that reduce energy consumption. These advancements not only benefit the environment but also contribute to cost savings and improved operational efficiency.
Proper training is essential for the safe and effective use of hydraulic winches. Operators should be educated on the components, operation, and maintenance of the winch. This includes understanding safety protocols and troubleshooting techniques to minimize downtime and ensure continuous operation.
Hydraulic winches, despite their initial higher cost compared to electric winches, offer long-term cost savings through reduced maintenance and increased efficiency. Their ability to handle heavy loads without overheating reduces the need for frequent repairs, making them a cost-effective option for industries requiring consistent and reliable performance.
Hydraulic winches are powerful tools that rely on a vehicle's hydraulic system to operate. Understanding the components involved and how they work together is essential for effective use and maintenance. By leveraging the power of hydraulic systems, these winches can handle demanding tasks with efficiency and reliability.
The primary components include a hydraulic motor, pump, valves, and drum. These work together to convert hydraulic energy into mechanical energy.
A hydraulic winch generates power by using a pump to pressurize hydraulic fluid, which is then directed to the hydraulic motor. This motor converts the hydraulic energy into mechanical energy to rotate the drum.
Key vehicle components include the power steering pump, hydraulic reservoir, hydraulic hoses and fittings, directional solenoid valve, and relief valve.
Hydraulic winches offer higher power capacity, durability, and efficiency compared to electric winches. They are less prone to overheating and can operate continuously.
Maintenance involves ensuring all connections are secure, regularly checking fluid levels, and replacing worn parts. Proper installation is also crucial for longevity and efficiency.
