When it comes to towing, loading, and recovery tasks, the choice of winch can significantly impact efficiency, safety, and reliability. For small tow trailers, a hydraulic winch offers distinct advantages over other types such as electric or manual winches. This comprehensive article explores why using a hydraulic winch for a small tow trailer is a smart investment, detailing its benefits, working principles, installation tips, and maintenance. Along the way, we include visual aids and videos to enhance understanding.

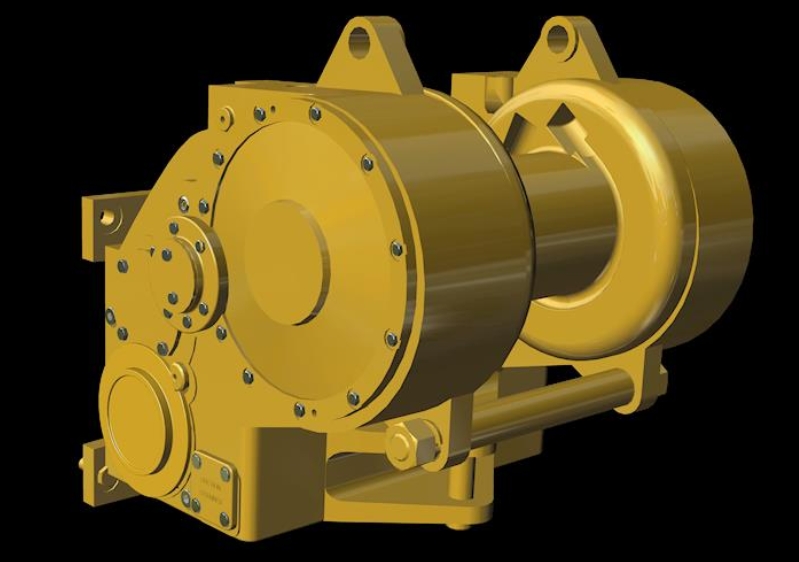

A hydraulic winch is a mechanical device powered by hydraulic fluid pressure to wind or unwind a cable or rope, enabling the pulling or lifting of heavy loads. Unlike electric winches that rely on electric motors, hydraulic winches use a hydraulic motor connected to a hydraulic pump, often driven by the vehicle's engine or an independent power source.
- Hydraulic Motor: Converts hydraulic fluid energy into mechanical force to rotate the winch drum.
- Hydraulic Pump: Supplies pressurized fluid to the motor.
- Reservoir and Control Valves: Manage fluid flow and pressure for precise operation.
- Gear System: Amplifies torque for efficient load handling.
Hydraulic winches deliver greater pulling power compared to electric winches of similar size. This makes them especially effective for towing heavier vehicles or equipment onto small trailers where space and power are limited but performance cannot be compromised.
- Hydraulic winches can handle loads from 5,000 lbs to over 15,000 lbs, depending on the model.
- Their high torque output ensures smooth and reliable pulling even under heavy loads[1][4][16].
Unlike electric winches, which often have duty cycles limiting continuous use due to motor overheating, hydraulic winches can operate non-stop. This is crucial when loading or recovering vehicles that require prolonged pulling efforts.
- Hydraulic systems dissipate heat more effectively.
- The winch motor is less prone to thermal damage, ensuring reliability during extended tasks[15].
Small tow trailers have limited space for mounting equipment. Hydraulic winches are available in compact designs that fit well on small trailers without sacrificing power.
- Compact hydraulic winches deliver up to 10,000 lbs pulling force.
- They can be mounted in various orientations to optimize trailer space[2][16].
Hydraulic winches are typically sealed units, making them highly resistant to water, mud, and dust. This is an advantage for tow trailers used in off-road or marine environments.
- Many hydraulic winches are submersible and operate flawlessly even when submerged.
- Their closed hydraulic systems prevent fluid contamination and corrosion[15].
Hydraulic winches offer smooth, controllable pulling speeds and powerful braking systems. This precision is vital when loading delicate equipment or vehicles onto trailers.
- Hydraulic brakes can hold full load securely.
- Control valves allow fine speed adjustments, improving safety during operation[3][4].
Hydraulic winches are versatile and find applications in various towing and loading scenarios involving small trailers:
- Vehicle Recovery: Pulling stuck or disabled vehicles onto the trailer.
- Boat Loading: Assisting in loading boats onto trailers at ramps.
- Equipment Transport: Loading heavy machinery or construction equipment.
- Off-Road Towing: Handling loads in rugged terrains where reliability is key[14][20].
The hydraulic winch on a small tow trailer operates by receiving pressurized hydraulic fluid from a pump, usually powered by the towing vehicle's engine or an auxiliary hydraulic system. The fluid drives the hydraulic motor, which turns the drum to wind or unwind the cable.
1. Engage Hydraulic Pump: The vehicle's engine powers the hydraulic pump.
2. Fluid Flow: Pressurized fluid flows through control valves to the hydraulic motor.
3. Motor Rotation: The motor converts fluid pressure into mechanical rotation.
4. Cable Movement: The drum winds or unwinds the cable to pull or release the load.
5. Braking: Hydraulic brakes engage automatically to hold the load when needed.
Proper installation is essential for safe and effective use of a hydraulic winch on a small tow trailer.
- Choose a solid part of the trailer frame to distribute the load evenly.
- Use high-strength bolts (grade 9 or above) to secure the winch.
- Consider using a mounting plate to provide a stable base and distribute forces[7][18].
- Connect hydraulic hoses carefully, avoiding heat sources like exhaust manifolds.
- Use 90° fittings if necessary for flexible hose routing.
- Ensure all fittings are torqued properly and sealed with O-rings to prevent leaks[7].
- Install a relief valve in the hydraulic system to prevent overpressure.
- Check for proper alignment of the balance valve to avoid loss of line pull.
- Regularly inspect hoses and fittings for wear or damage[7][8].
Maintaining your hydraulic winch ensures longevity and reliable performance.
- Inspect hydraulic fluid levels and top up as needed.
- Check hoses and fittings for leaks or wear.
- Lubricate all grease points on the winch regularly.
- Inspect the cable or rope for fraying or damage and replace if necessary[12].
- Slow cable movement: Check hydraulic feed rate and pressure.
- Winch drum not turning: Verify hydraulic pressure and clutch engagement.
- Overheating: Allow the system to cool and inspect for hydraulic fluid quality[10][11].
A practical demonstration by Ledwell shows how to safely operate a hydraulic winch on a trailer, including safety checks and remote control usage.
Choosing a hydraulic winch for small tow trailer offers unmatched power, durability, and reliability for towing and recovery tasks. Their ability to operate continuously without overheating, combined with robust construction and precise control, makes them ideal for professional and recreational users alike. Although installation requires some hydraulic expertise, the benefits far outweigh the initial setup effort. With proper maintenance, a hydraulic winch can serve as a dependable tool for years, enhancing safety and efficiency in towing operations.
Hydraulic winches provide greater pulling power, continuous operation without overheating, and superior durability in harsh environments compared to electric winches, which are generally limited by duty cycles and heat buildup[1][15].
Yes, as long as the trailer frame is strong enough to handle the winch load and proper hydraulic connections can be made, a hydraulic winch can be installed. Using a mounting plate and high-strength bolts is recommended for safety[7][18].
Regularly check hydraulic fluid levels, inspect hoses and fittings for leaks, lubricate moving parts, and inspect the cable for wear. Address any issues promptly to ensure safe operation[12].
Most hydraulic winches are sealed and can operate in wet or submerged conditions without damage, making them suitable for marine and off-road applications[15].
Hydraulic winches often include powerful hydraulic brakes to hold loads securely, relief valves to prevent overpressure, and control valves for precise operation, enhancing safety during use[3][7].
